12. Start-up
The spring pre-tension is factory set to 210° and is normally not necessary to adjust. If adjustment has to be carried out, see 9.3.

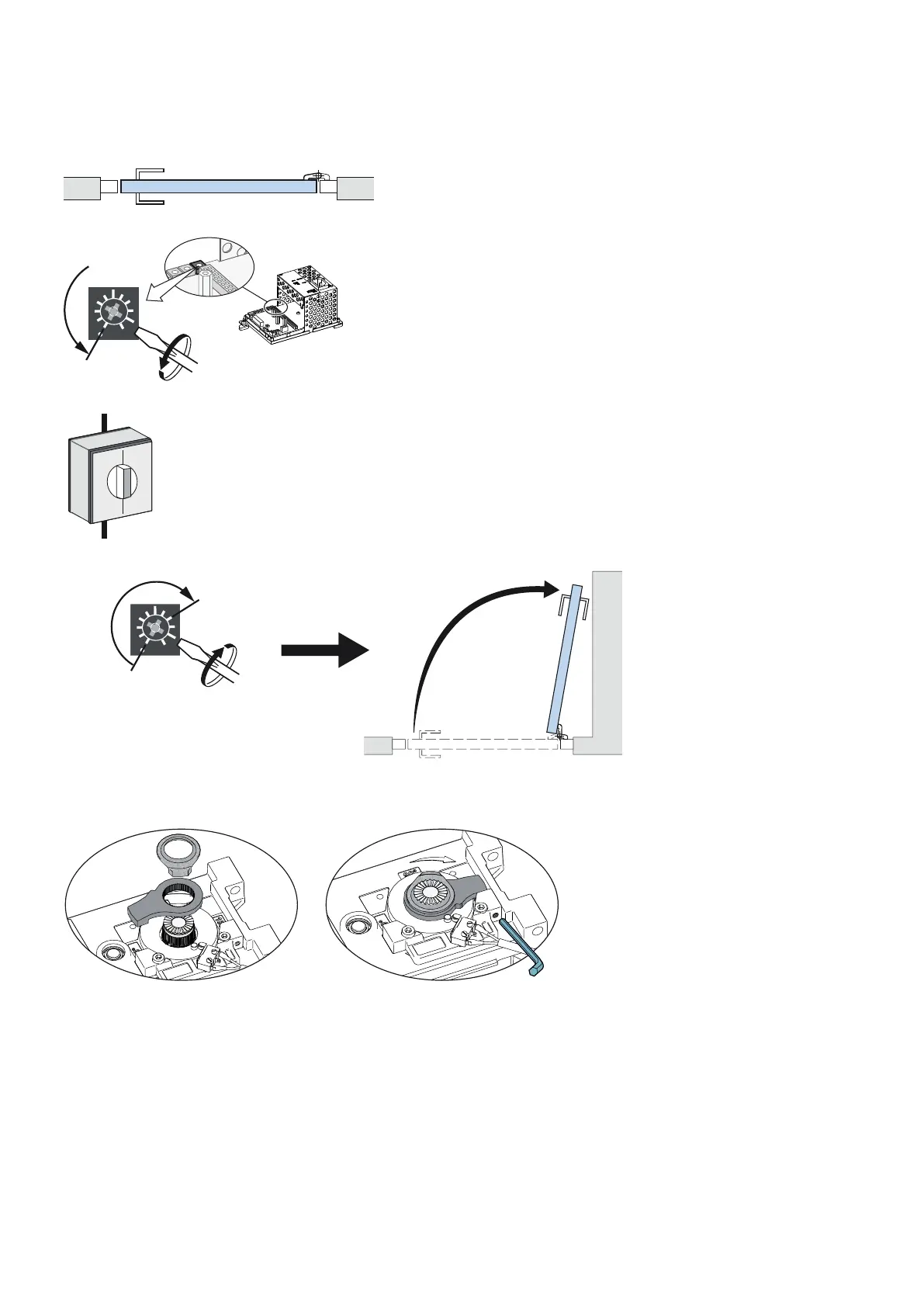

12.1 Adjusting the door stop
a. Close the door
b. Turn the potentiometer SPTE to 0° (if not already on 0°).
c. Switch on the mains (the operator will find its closed position).
d. Open the door to required open position, plus approx. 15mm by turning the potentiometer SPTE, clockwise.
e. Lift the lock kick cam and the door stop arm up, mount the stop arm on the splines, as close as possible to the stop block 1).
Fine-adjust if necessary with the screw on the stop block 2)
0°
SPTE
0
0
0°
SPTE
≈ 95°
2)1)
