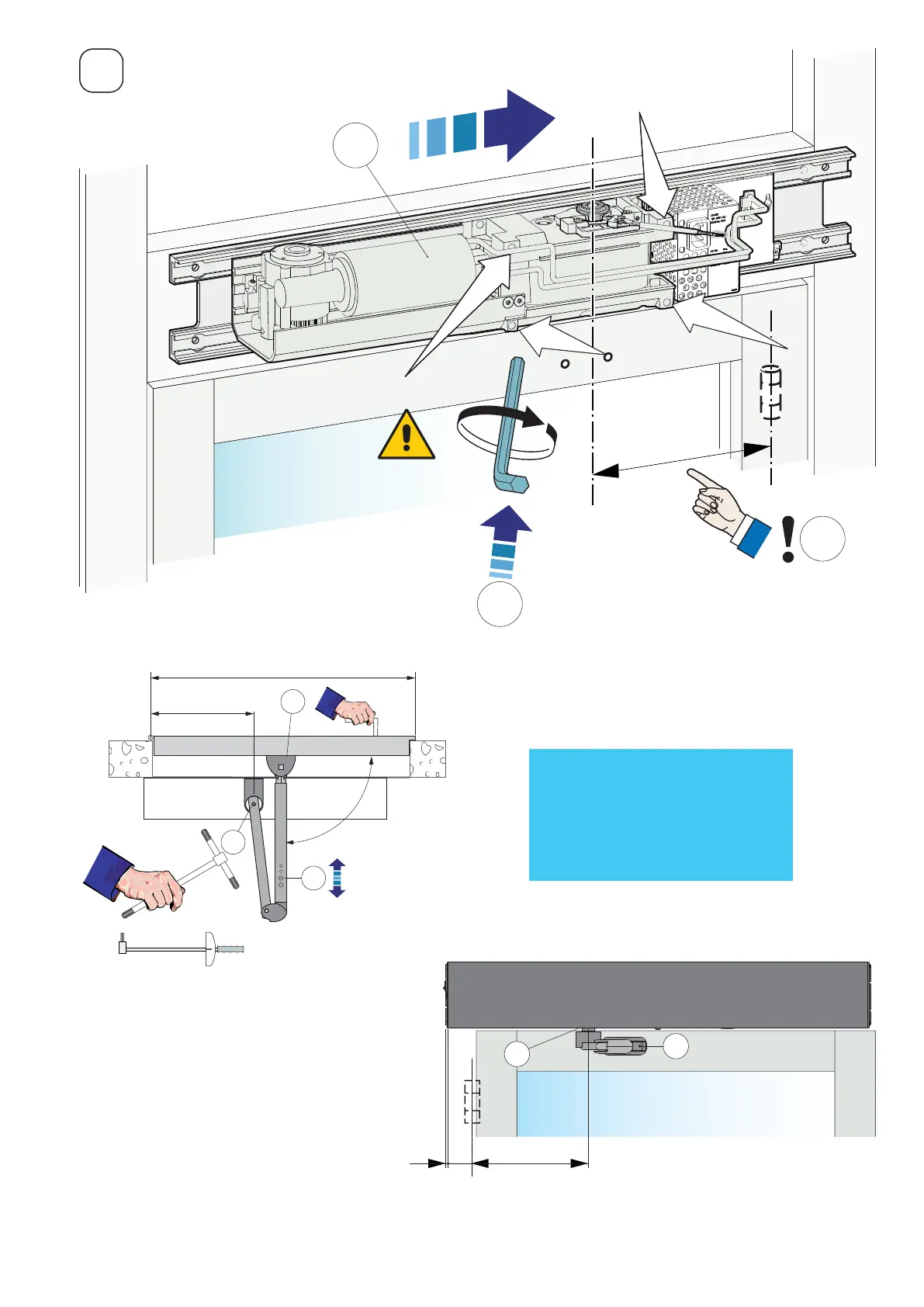

6.a.1 Fixing the arm DAB805PSA
• Move the door manually to check it opens and closes correctly, without any friction.
• With the door closed, fix the arm to the arm support [A] on the automation.
• Fix the bracket [B] to the door wing, forming an angle of 90°. Lengthen or shorten the arm [C] if necessary.
A
C
B
90°
16 Nm
+/-
210
min 550
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
A
B
210264
NOTE: open the door slightly and tighten
the screw of the arm support seat [A] at 16
Nm (as shown in the figure).
If a torque wrench is not available, use a
hexagon wrench of the type shown in the
figure, gripping it on the long side and A
tightening very firmly.
