DITEC DAB105 - Sliding Arm Automation DAB805 PLA; Left-Hand Opening Preparation

17
IP2159EN

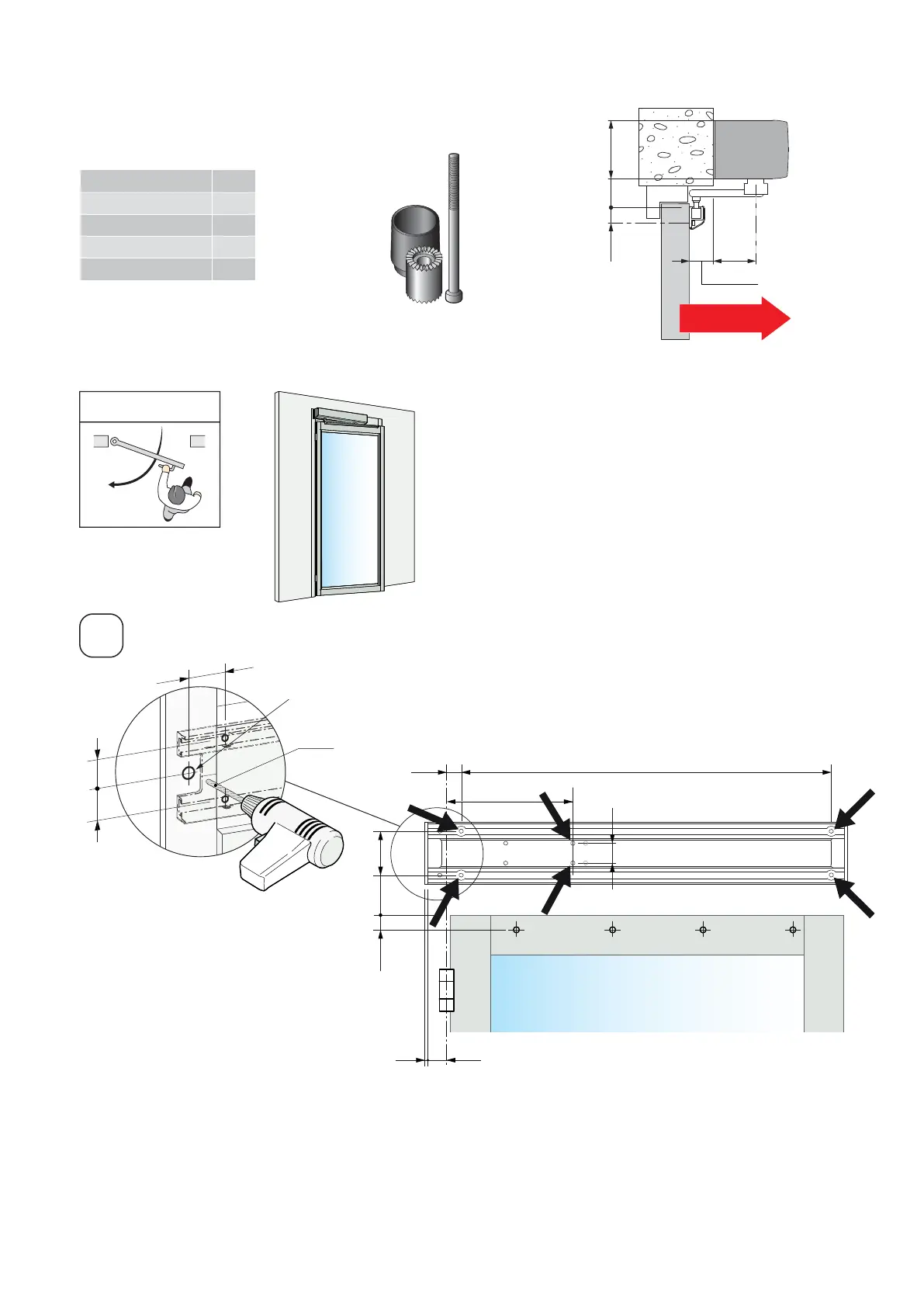

7. Automation with sliding arm DAB805PLA
Use the sliding arm for doors that open inwards (as seen from the automation side).
• Prepare the set-up for fixing the automation to the wall, respecting the measurements shown in the figures above (with refer-
ence to the hinge axis).
• Drill a hole in the door wing, in line with the fixing for the sliding arm.
• If necessary, use the DAB805SE2/SE5/SE7 extensions to increase the X measurement between the automation and the arm fix-
ing points.
30
63
-20/130
107X
Shaft extension X
/ 50
DAB805SE2 70
DAB805SE5 100
DAB805SE7 120
Automation preparation and fastening (left-hand opening)
X+16 7530
31 633
26
4
34
212
Left-hand opening
Ø16
==
Ingresso cavo
42
1
Cable inlet
