Contact Function / Accessory Description
1-4
GND-MAT
(DIP2=ON)
N.O. Mat safety
Mat safety means that:
• a closed door will not open, if someone steps on the mat
• an open door will not close, if someone steps on the mat
• during opening, the door will continue to open, even if someone steps on the mat
• during closing, the door will continue to close, even if someone steps on the mat
• opening impulses are prevented during closing, if someone steps on the mat
• the mat is not active in program mode OFF, manually opened door or during battery op-
eration (Power Save Mode)
5
LOUT
(-) Lock-out for OPD (–)
The external lock signal (LOUT) is available as it is required by some OPD sensors for proper
operation.
LRN
Automatic self-learning.
If any of the parameters SPRING PRE-TENSION, CLOSING TORQUE (CLTQ) and LOCK RELEASE (DIP-switch No.3 on
DAB905ESE) are changed after performing a learn, a new learn must be carried out.
Make sure the door is fully closed.
Move away from the door as soon as you have pressed the LRN button.
The door has no safety settings during the automatic self-learning procedure.
The door could suddenly slam shut.
See chapter 12.3.

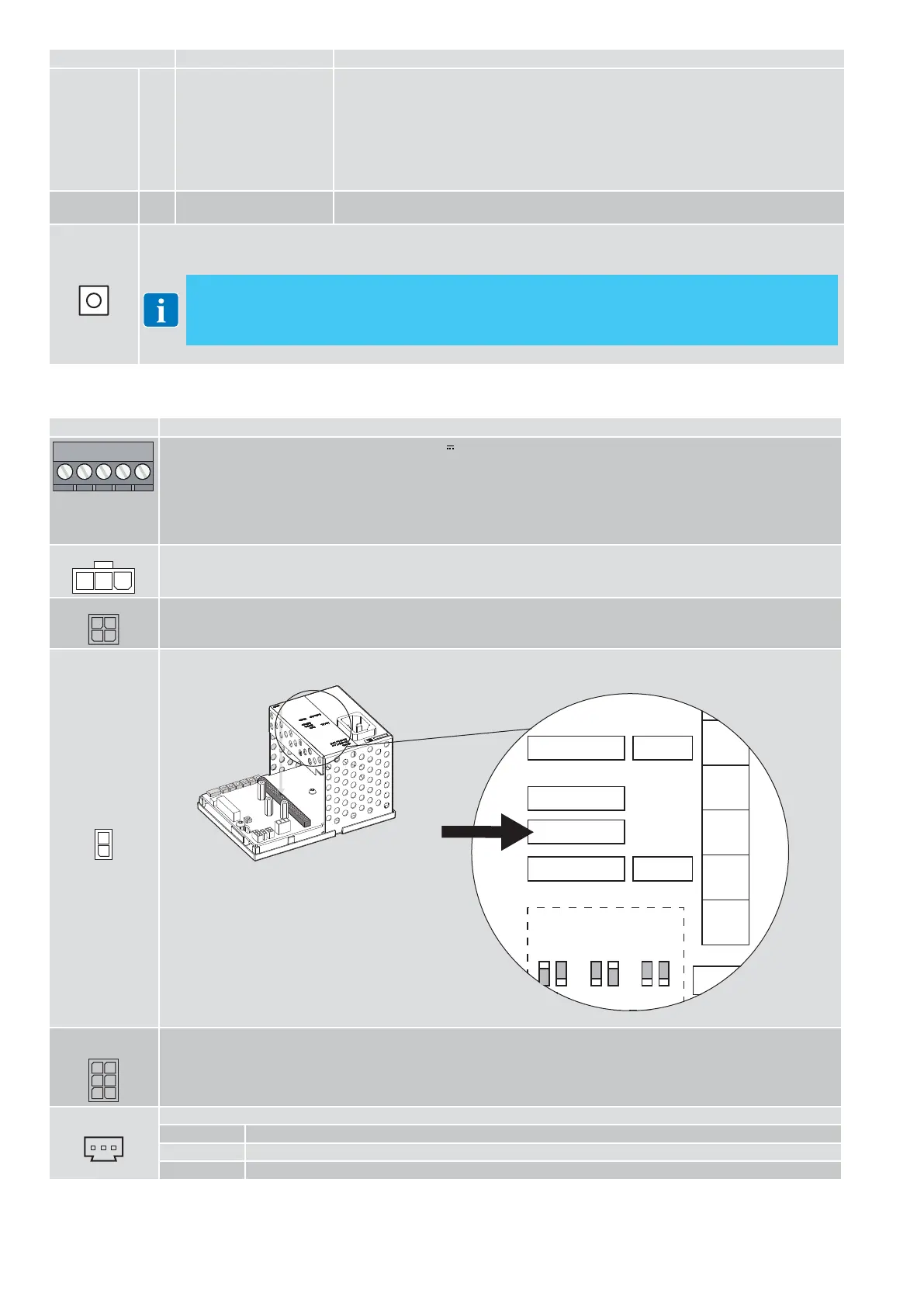

9.2 Outputs and accessories
Output Description
+24V
GND
1 ... 6
Output for the power supply to the accessories 24V 400mA max.
NOTE: the maximum absorption of 400 mA corresponds to the sum of all the accessories installed.
MOTOR
Motor connection
ENCODER
Encoder connection
N.C. / SWITCH
Connection for lock kick microswitch. Connect instead of the N.C. contact
Available on the control panel with hardware version indicated, or subsequent versions
DAB105CU
See chapter 12.2
SYNC
Connection for cable for synchronisation between two swing doors.
For details about the operation, refer to chapter 18.
ON/OFF/HOLD
Connection of the ON/OFF/HOLD switch
ON The IIMP and XIMP opening contacts are enabled.
OFF The XIMP opening contact is excluded.
HOLD OPEN Door open.
1003532
PUSHPULL ST
ARM1
ARM2
ARM1
ARM2
ARM1
ARM2
Rev.Art. No.
Serial. No. Week
SW ver.
LOUT
+24V
OPD
XIMP
IIMP
GND
OPD
HW ver.
L
1
2
co
