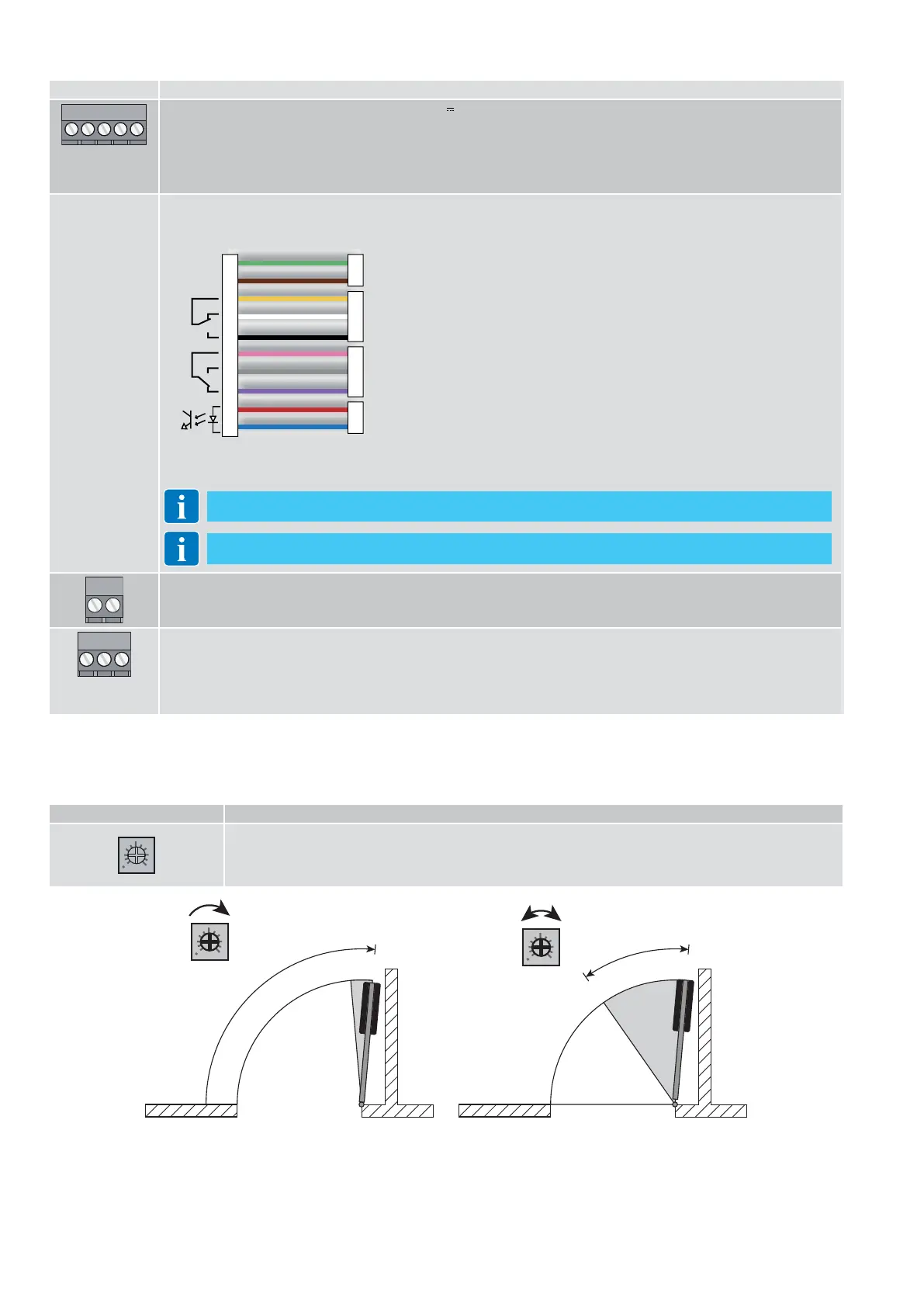

11.3. Adjustments
Trimmer
Trimmer Description
Adjustment of the opening safety exclusion (blanking), from 45° to fully open.
During the door opening phase, this excludes the functioning of the safety device installed on the door wing, so
that the wall is not detected.
When the safety device is excluded, the LED lights up.
Output Description
+24V
GND
1 ... 5
Output for the power supply to the accessories 24V 400 mA max.
NOTE: the maximum absorption of 400mA corresponds to the sum of all the accessories installed.
SAFETY SENSOR
Connect a self-checking safety sensor on the door wing.
Connect the closing side sensor to terminals 1-2 (GND-PIMP).
Connect the opening side sensor to terminals 1-3 (GND-PDET).
12-24 V
AC-DC
COM
NC
NO
CO
M
NO
NC
1
5
1
3
1
2
5
4
GREEN
BROWN
YELLOW
WHITE
BLACK
PINK
GREY
PURPLE
RED**
BLUE**
POWER SUPPLY
STOP SIGNAL
(OPENING SIDE)
REVERSE SIGNAL
(CLOSING SIDE)
MONITORING
NOTE: in the event of a safety sensor fault during opening, the door closes and stays closed. It can only be opened manually.
In the event of a safety sensor fault during closing, the door stays open. By switching the function selector switch to DOOR
CLOSED, the door can operate in Low Energy mode. It can only be opened manually.
Remove jumpers 1-2 and 1-3.
For more information, refer to the REM sensor manual
67
DO NOT USE
8910
NO
COM
NC
Relay contact 24 V 1A
See J1 at chapter 11.3.
11.2 Outputs and accessories
MAX
MAX
Blanking
45°
Blanking
MAX
Open door
indication
To Next Page
