23
IP2159EN
• Move the door manually to check it opens and closes correctly, without any friction.
• With the door closed, fix the arm to the arm support [A] on the automation.
• Fix the guide [B] to the door wing, cutting off the excess part if necessary
210
max 50
920
A
B

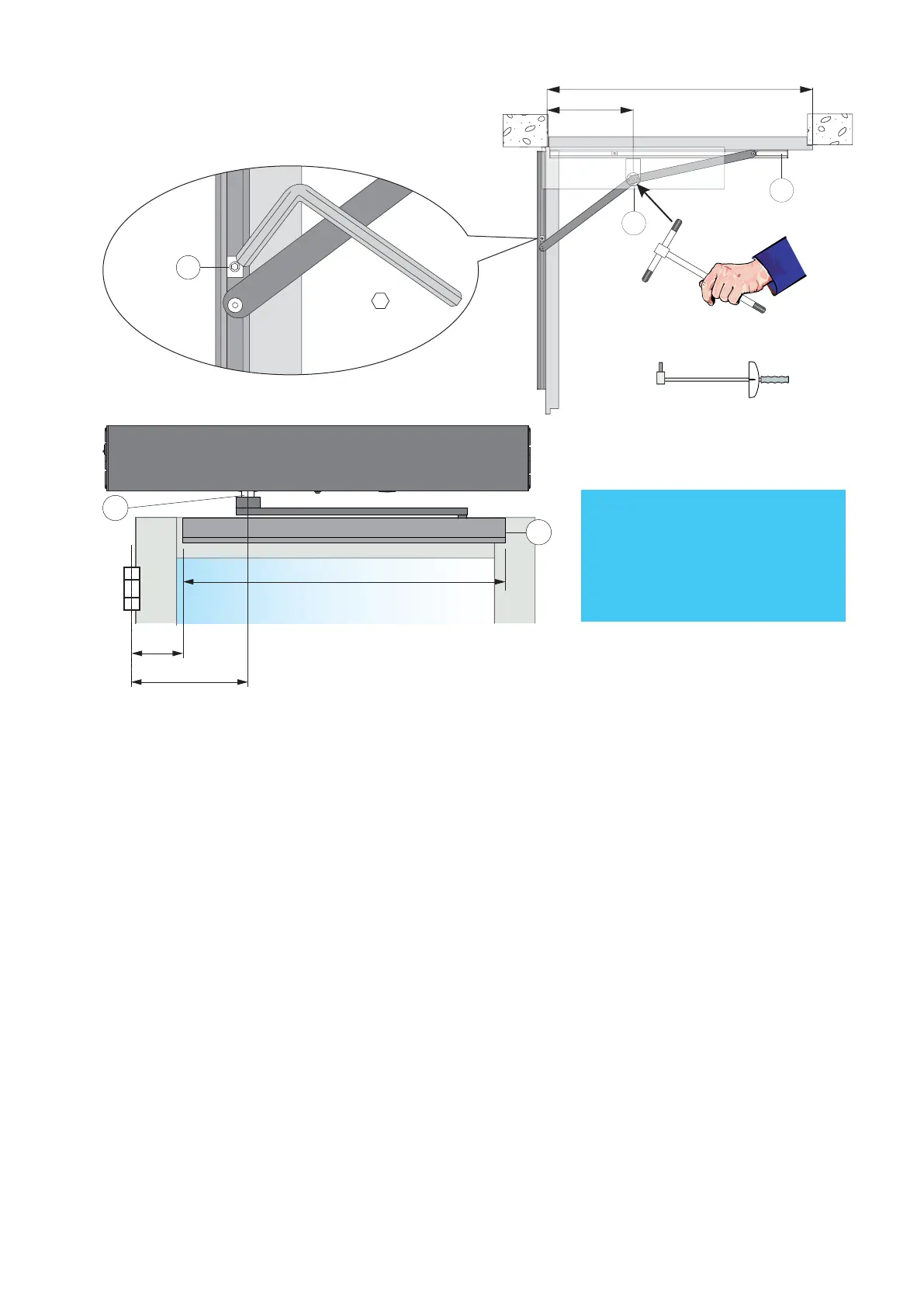

7.1 Fixing the sliding arm DAB805PLA
min 700
210
4mm
A
B
F
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
16Nm
NOTE: open the door slightly and tighten
the screw of the arm support seat [A] at
16 Nm (as shown in the figure).
If a torque wrench is not available, use a
hexagon wrench of the type shown in the
figure, gripping it on the long side and
tightening very firmly.
