8. Connecting to the electricity supply

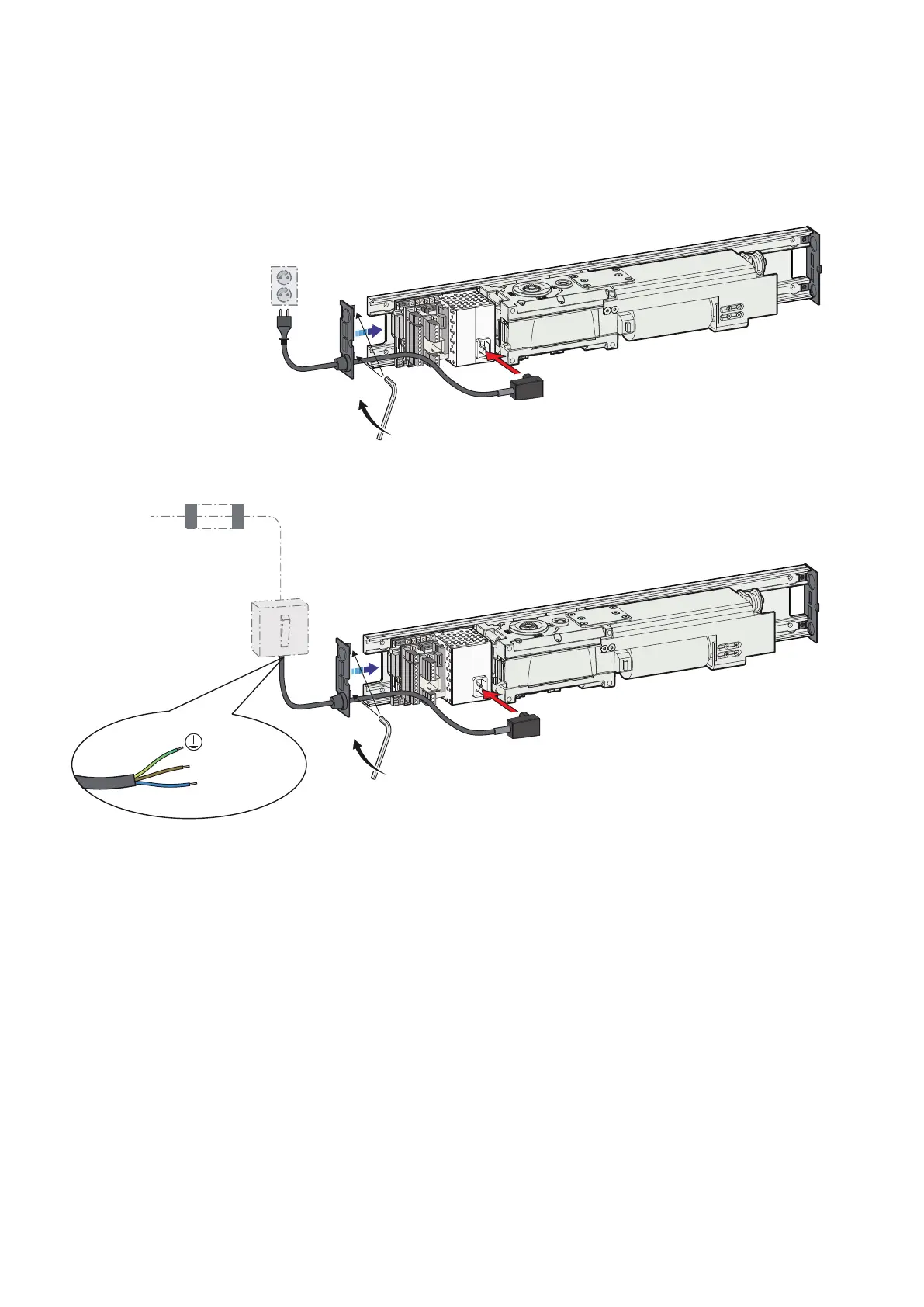

Before connecting the power supply, make sure the plate data correspond to that of the mains power supply.
An omnipolar disconnection switch with a contact opening distance of at least 3 mm must be fitted on the mains supply.
Check there is an adequate residual current circuit breaker and overcurrent cut-out upstream of the electrical system.
Use a H05RN-F 3G1,5 or H05RR-F 3G1,5 type electric cable.
In the section outside the automation, the connection to the mains power supply must be via an independent channel separate
from the connections to the control and safety devices.
Make sure there are no sharp edges that may damage the power supply cable.
0
1
= Yellow/Green
10AT
L = Brown
N = Blue
Yellow/Green
Brown
Blue
