DITEC DAB105 - Page 30

30
IP2159EN
Contact Function - Accessory Description
3 7
GND-KILL
N.O.
EMERGENCY CLOSURE
(FIRE BARRIERS)
The closure of the contact activates an emergency closure operation.
This command is active
in every situation, and has priority over every other command.
When the contact has reopened (with JUMPER J=ON), the door resumes operating as set
by the selector.
WARNING: if an EMERGENCY CLOSURE is activated, all the safety functions are
ignored and the door closes. People or objects in the path of the door during the
closing operation could suffer serious injury or damage.
This function is generally used to cut off a specific area in the case of a fire.
NOTE: this command can be combined with an emergency button.
The output contact can be changed from NO to NC by altering the pre-configured param-
eters, as explained in chapter 13.
The operation of the block during the emergency closure can be selected from the pre-set
parameters explained in chapter 13.
In a double door application, KILL is only connected to the master operator.
3
7
GND-KILL
N.O.

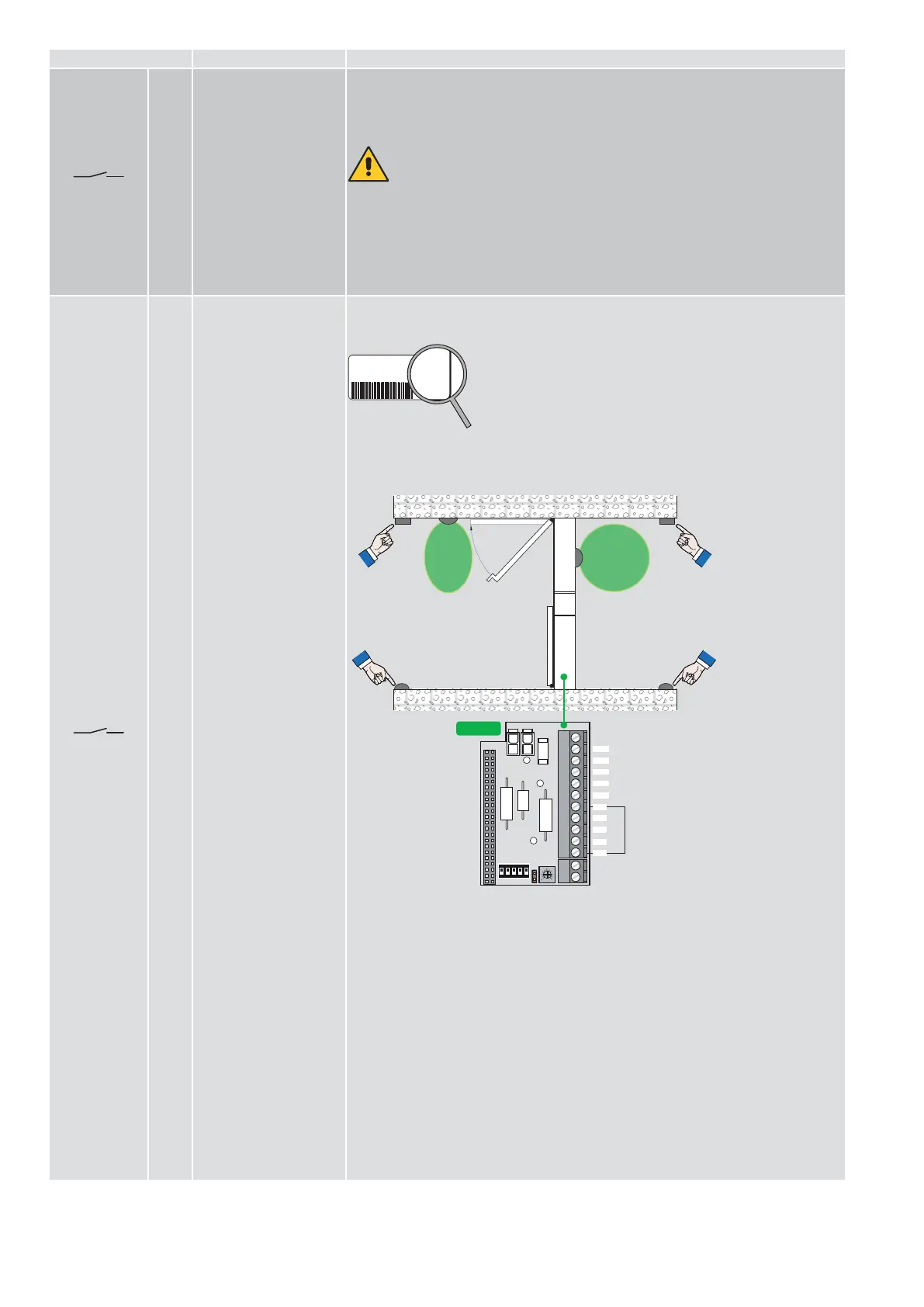

“NURSE & BED”
FUNCTION
Available on the control panle version indicated, or subsequent versions.
In installations with parallel doors, the “NURSE & BED” function can be enabled by con-
necting a switch to contacts 3-7 on the SLAVE door control panel.


'$%&8
SOLUTION 1
Connect a bridge between 3 and 7 on the slave DAB905ESE.
Use any impulse on master to open master door.
Use O/C impulse on Slave to open both doors.
SLAVE MASTER
IIMP
(MASTER)
OIMP
(MASTER)
MASTER MASTER
SLAVE
SLAVE
FOR BED
FUNCTION
ONLY
FOR BED
FUNCTION
ONLY
12345
ON
+24 V DC
KEY
O/C
OIMP
GND
12 345678910111213
OPEN
EXIT
OFF
UNL
KRST
KILL
DAB905ESE
SLAVE
SOLUTION 2
Connect a bridge between 3 and 7 on the Slave DAB905ESE.
Set dip switch PAG on Master board to ON.
Use any impulse on master to open master door.
Push slave door manually and it will open up automatically and stay open until master door
is closing.
SOLUTION 3
Connect an ON/OFF switch between 3 and 7 on the Slave DAB905ESE.
Switch in pos. ON, impulses on master will open only master door.
Switch in pos. OFF, impulses on master will open both doors.
SOLUTION 4
Connect a bridge between 3 and 7 on Slave DAB905ESE.
Set dip switch PAG on Slave board to ON.
Any impulse on the master control unit:
- Shorter than 2s opens only master door.
- Longer than 2s opens both doors.
NOTE:How to connect KILL input is determined by chosen parameter group at the slave, be
sure that chosen group has KILL impulse configuration Normally Open. If KILL has to be
Normally Closed, terminal 3 and 7 should be disconnected instead of connected.
FOR BED
FUNCTION
ONLY
FOR BED
FUNCTION
ONLY
