Some information about the ETH and CAN boards:
• it is possible to define more than one GENLINE with name ETH and CAN.
• do not change the “fixed string” (name).

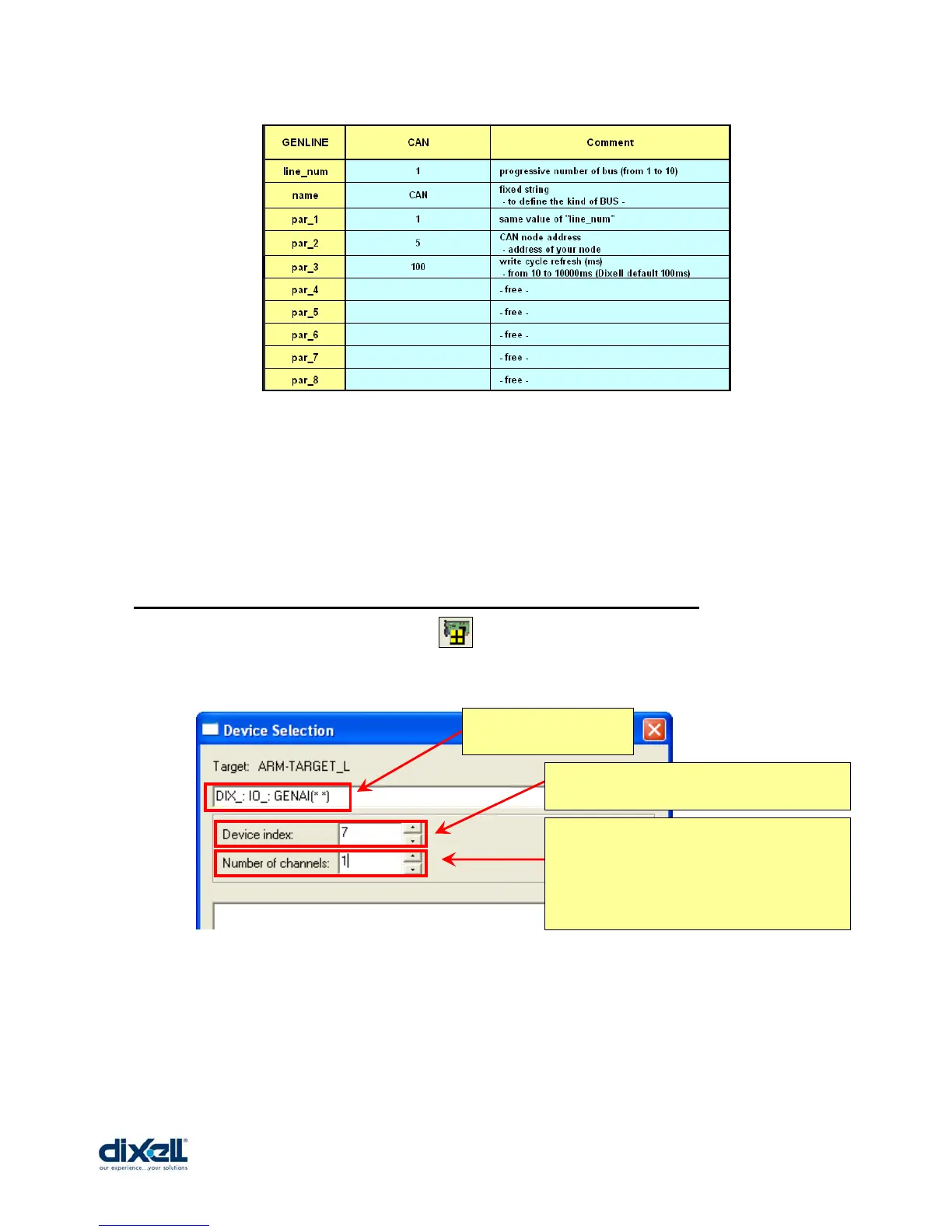

14.2.2 Define the I/O (GENAI, GENAO, GENDI, GENDO boards)
To add a new I/O board, click the icon and fill in the following table:
Regarding the number of channels pay attention because:
• if the number of channels is > 1, variables needs to have a consecutive addresses.
This is the situation when your iPRO has to read 10 variables with address from 100 to
109; in this case declare one GENAI board with Number of Channels = 10.
This is the new board
to add.
This is the board number and the number
increase automatically.
The number of channels is a group of
variables that iPRO can read and write with
a single frame.
For the example, we have to read only one
probe so the value is 1.
