1592025400 – Vers. 1.0 - 135
-
• If the number of channels is > 1 but the addresses are not consecutive, will be
necessary to define different boards.
This is the situation when your iPRO has to read 3 variables with address 100, 101
and 104; in this case declare two GENAI: the first to read the variables with address
100 and 101 (the Number of Channels = 2), the second to read the variable with
address 104 (Number of Channels = 1).
Then confirm and the new board will be added in your project.

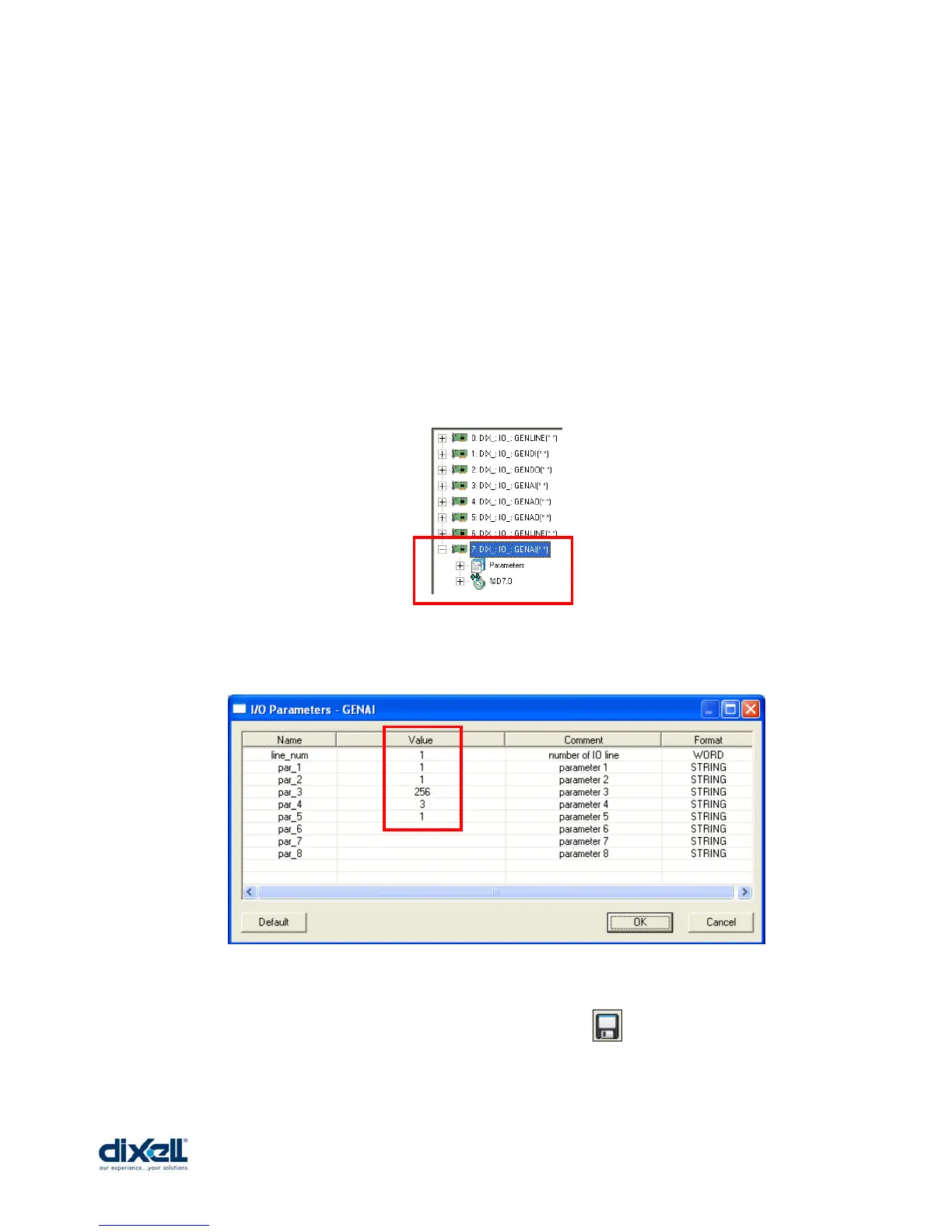

Double click on “Parameters” to configure the GENAI board.
To complete the configuration, confirm with “OK” and save .
