Remove and Replace the Instrument Front Panel
5-6 72A-2337-01 Rev. B 11/05
10. Disconnect the ground wire (Figure 5.7).
Blue and Brown
AC wires
Chassis
Ground
wire

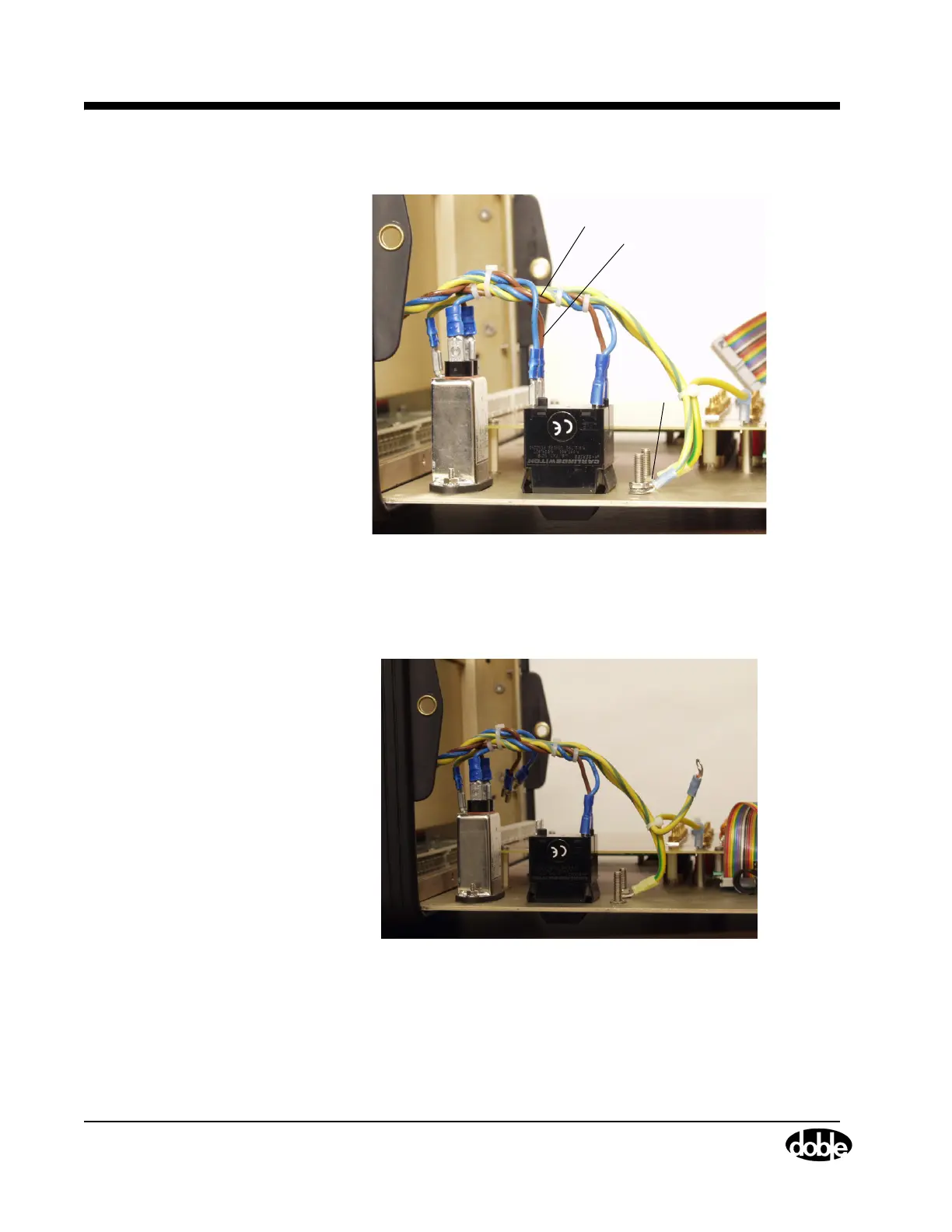

Figure 5.7 Location of the AC Leads and the Ground Wire
Figure 5.8 shows the circuit breaker after the blue AC lead, the brown AC lead,
and the chassis ground wire disconnected.
Figure 5.8 AC Leads and Chassis Ground Disconnected
The front panel is now completely disconnected from the instrument.
