Product Introduction
Overview

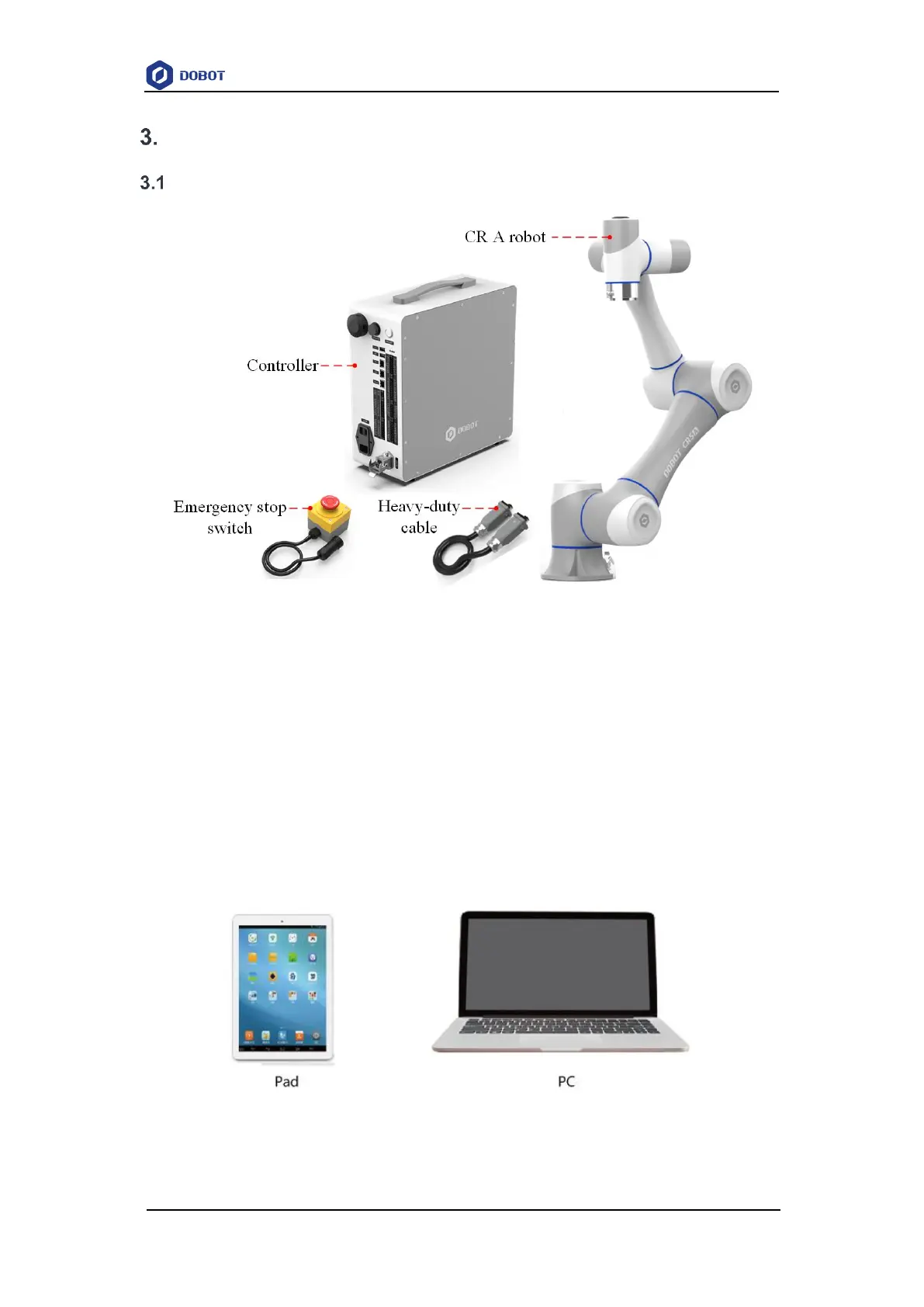

Figure 3.1 Robot overview
The main components of the robot system include:
⚫ CR A robot: Six-axis robot arm, main moving parts.
⚫ Controller: Core computing and electrical components, with IP54 protective cover
(optional).
⚫ Emergency stop switch: Connected to the controller to realize the emergency stop
function.
⚫ Heavy-duty cable: Connect the robot arm to the controller.
In addition, the system includes an operating terminal (tablet or PC) for installing the robot
control software.
Figure 3.2 Operation terminal
