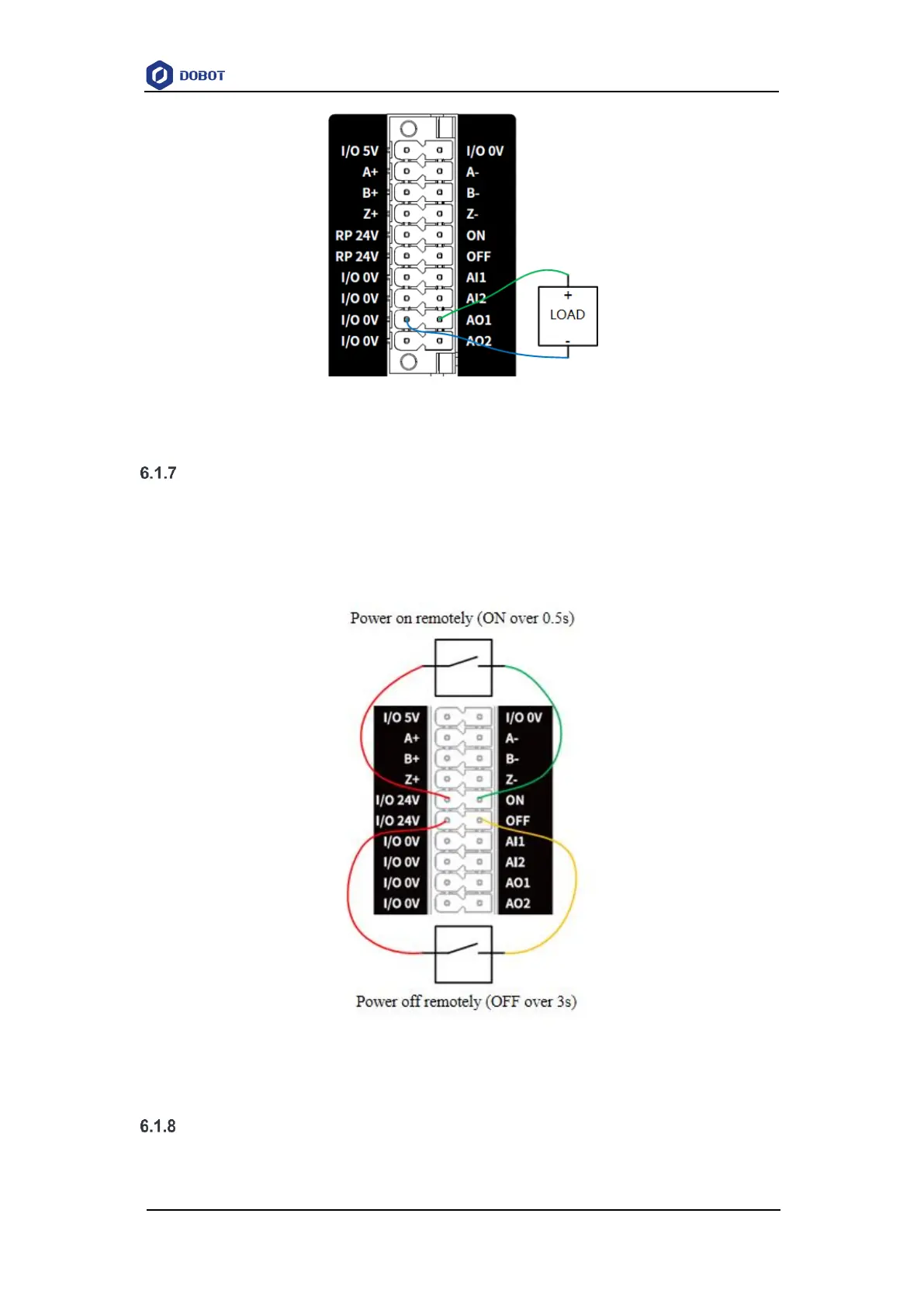

Figure 6.9 AO connected to external load
Remote switch interface
The remote switch interface is used to remotely control the controller to switch on/off. When
the ON interface inputs in high level for 0.5s or more, the controller will be turned on. In the power-
on status, when the OFF interface inputs in high level for 3s or more, the controller will be turned
off. The wiring is shown below.
Figure 6.10 Remote switch interface wiring
Encoder I/O interface
An encoder is a device that converts angular or linear displacement into electrical signals. It
