According to r =
√
𝑋
2
+ 𝑌
2
, calculate r = 10cm.
Select the corresponding curve according to the weight of the load. As the load is 3.8kg,
you need to find the curve of 4kg correspondingly.
Determine a point according to the r and Z coordinates, and compare the positional
relationship between the point and the 4kg curve to judge the working condition. If the
point is below the curve, the model is proper, otherwise you need to select other models.

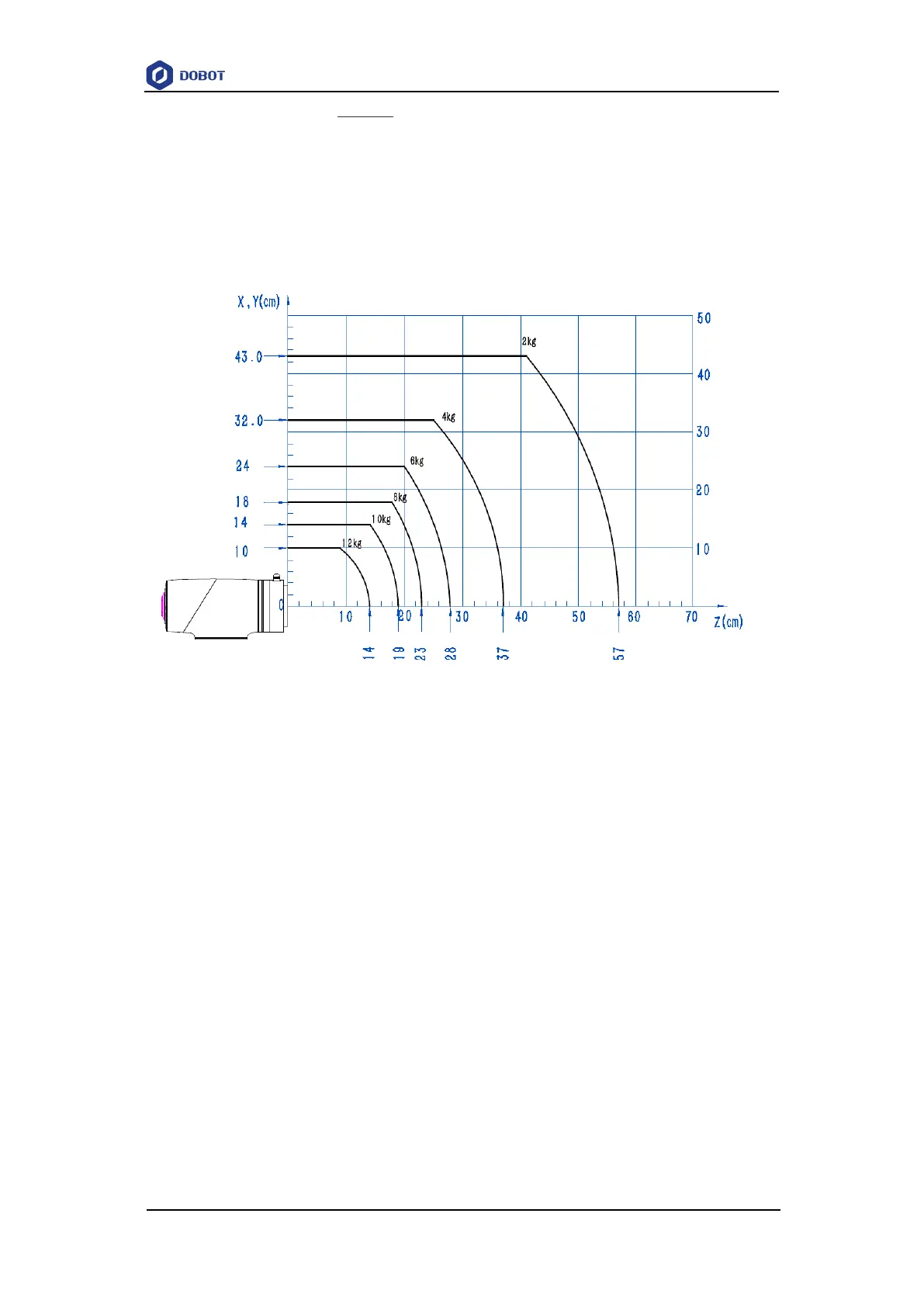

Figure 5.2 CR12A load curve
