CAUTION: Propeller shaft universal joint straps
must be replaced. Straps slightly deform when
torqued in place. Used straps may result in reduced
clamping load.
(3) Install belly pan and tighten bolts to 54 N·m
(40 ft. lbs.).
(4) Install exhaust heat shield to the belly pan.
(5) Remove support and lower vehicle.

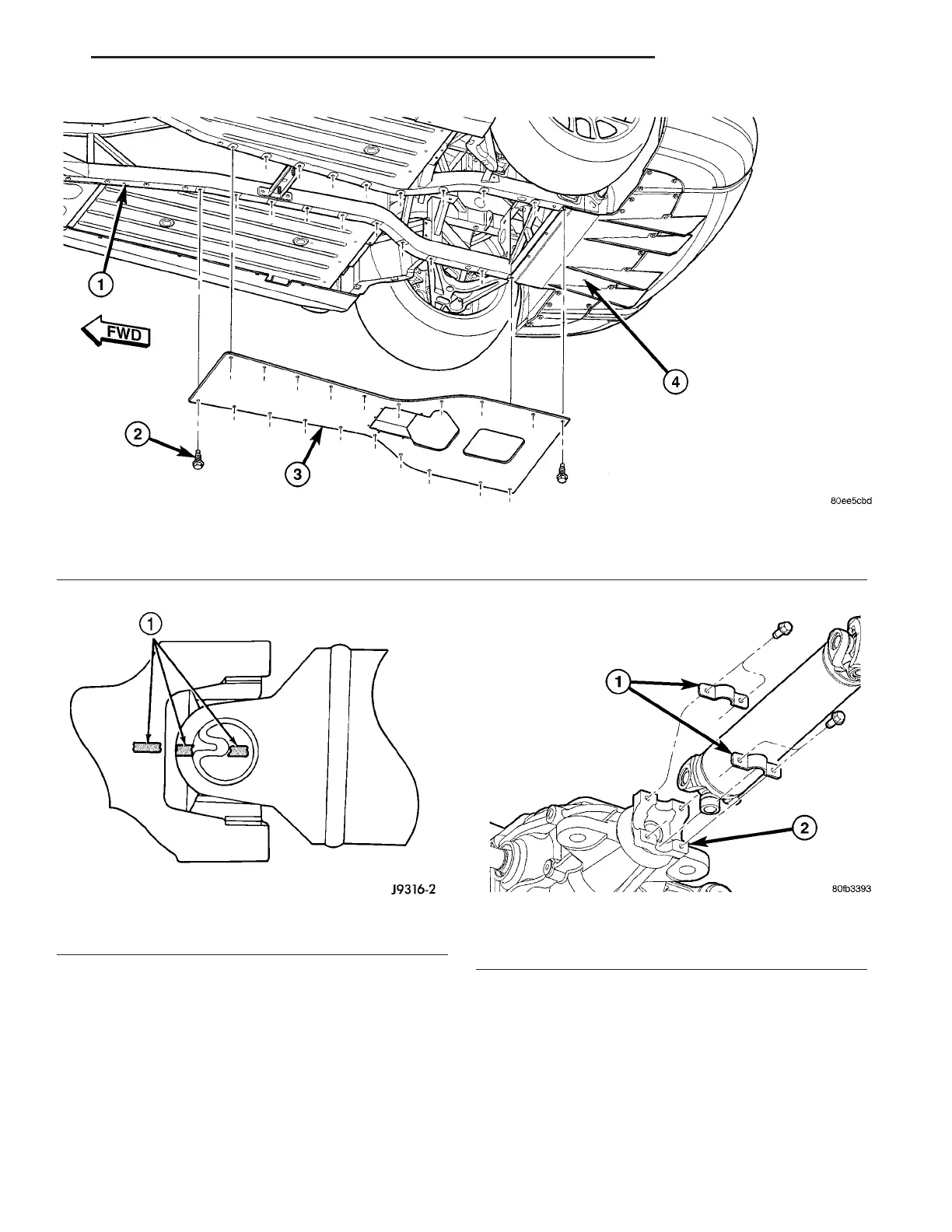

Fig. 7 BELLY PAN
1 - FRAME ASSEMBLY
2 - BOLTS (20)
3 - BELLY PAN
4 - REAR EXTENSION BELLY PAN
Fig. 8 YOKE REFERENCE MARKS
1 - REFERENCE MARKS
Fig. 9 PROPELLER SHAFT
1 - STRAPS
2 - PINION YOKE
ZB PROPELLER SHAFT 3 - 5
PROPELLER SHAFT (Continued)
