(8) Install push pins that secure lower air dam to
radiator fan shroud (Fig. 21).
(9) Lower vehicle.
(10) Install air cleaner housing assembly, connect
throttle body air inlet hose (Refer to 9 - ENGINE/
AIR INTAKE SYSTEM - INSTALLATION).
CAUTION: Do not run engine with power steering
fluid below the full mark in the reservoir. Severe
damage to the hydraulic cooling fan or the engine
can occur.
(11) Refill power steering fluid reservoir and bleed
air from steering system.
(12) Run engine and check for leaks.
RADIATOR
REMOVAL
(1) Disconnect the negative battery cable from bat-
tery.
(2) Drain the cooling system (Refer to 7 - COOL-
ING/ENGINE - STANDARD PROCEDURE - DRAIN-
ING COOLING SYSTEM).
(3) Disconnect throttle body air inlet hose, remove
air cleaner housing assembly (Refer to 9 - ENGINE/
AIR INTAKE SYSTEM - REMOVAL).
(4) Remove oil cooler attaching fasteners. Do Not
disconnect oil cooler lines. Reposition oil cooler.
(5) Remove radiator fan fasteners. Do Not discon-
nect radiator fan hydraulic lines. Reposition radiator
fan (Fig. 23).

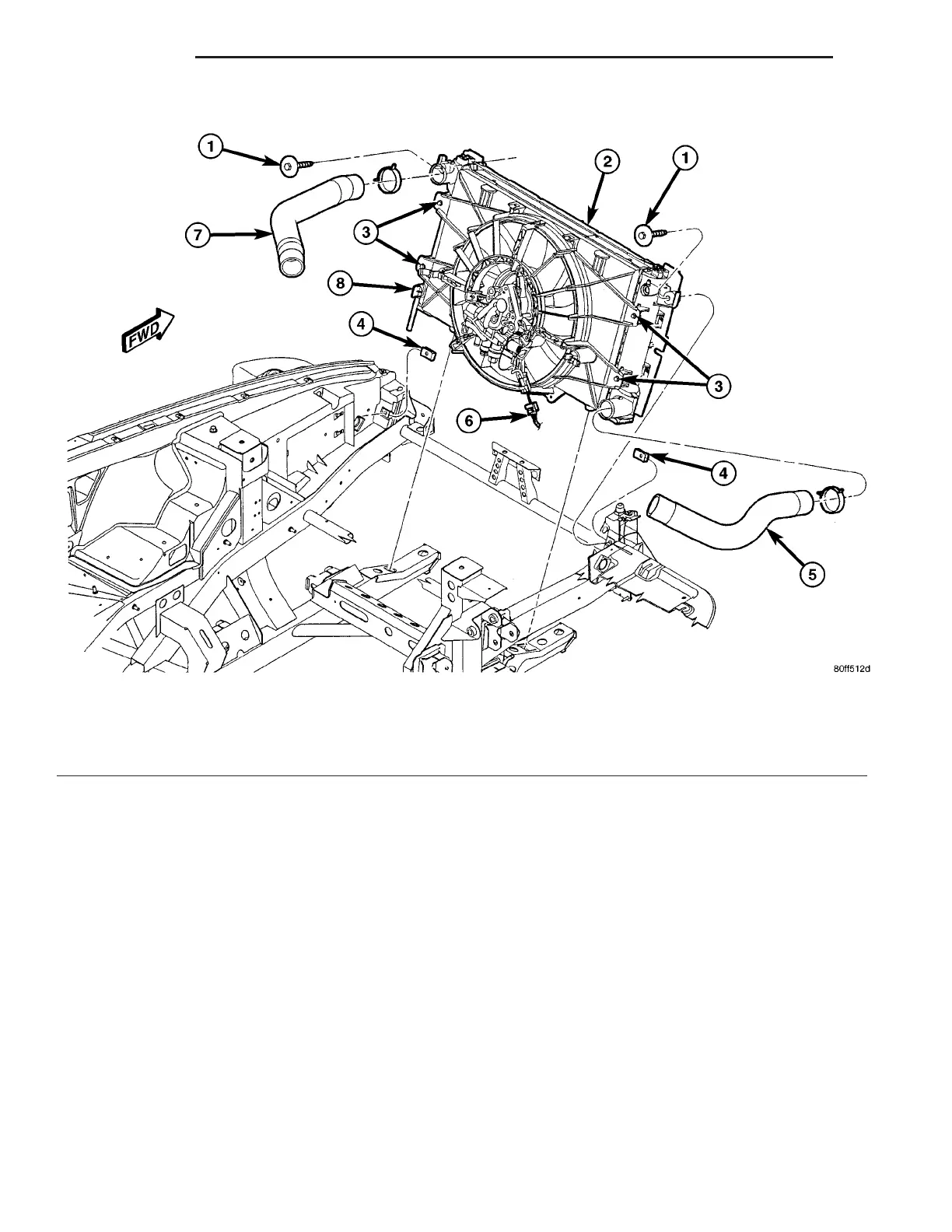

Fig. 23 Radiator and Fan
1 - RADIATOR MOUNTING FASTENERS
2 - COOLING MODULE
3 - FAN MOUNTING FASTENERS
4-9U9- NUT
5 - LOWER RADIATOR HOSE
6 - FAN ELECTRICAL CONNECTOR
7 - UPPER RADIATOR HOSE
8 - DRAINCOCK
7 - 24 ENGINE ZB
RADIATOR FAN (Continued)
