INSTALLATION
(1) Ensure the ignition switch is in the RUN posi-
tion and the actuator shaft in the lock housing is in
the RUN position.
(2) Carefully install the ignition switch. The
switch will snap over the retaining tabs (Fig. 15).
Install mounting screw (Fig. 13).
(3) Install electrical connectors to ignition switch.
(4) Install the multi-function switch and tighten
the 2 screws (Fig. 12).
(5) Install upper and lower shrouds.
(6) Install key cylinder (cylinder retaining tab will
depress only in the RUN position).
(7) Connect negative cable to battery.
(8) Check for proper operation of ignition switch
and key-in warning switch.

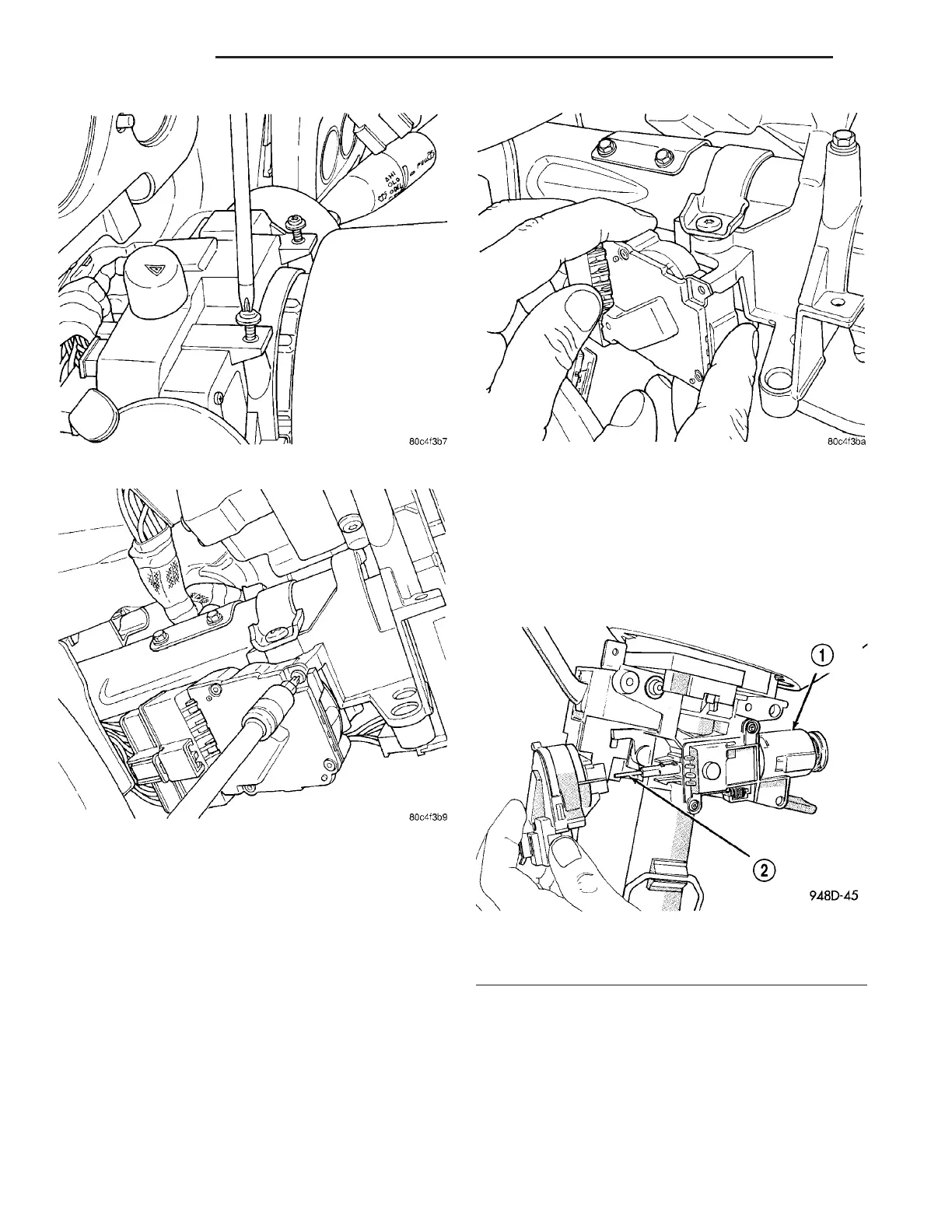

Fig. 12 Multi-Function Switch
Fig. 13 Ignition Switch Mounting Screw
Fig. 14 Removing Ignition Switch
Fig. 15 Ignition Switch Installation
1 - LOCK CYLINDER HOUSING
2 - SHAFT
19 - 16 COLUMN ZB
IGNITION SWITCH (Continued)
