Damage to the electronic components of the handle due to
contact possible.
Do not touch the electronic components of the handle.
Touch an earthed object made of metal to discharge any
electrostatic charge before continuing work.
A heater or tap are examples of suitable earthed objects.

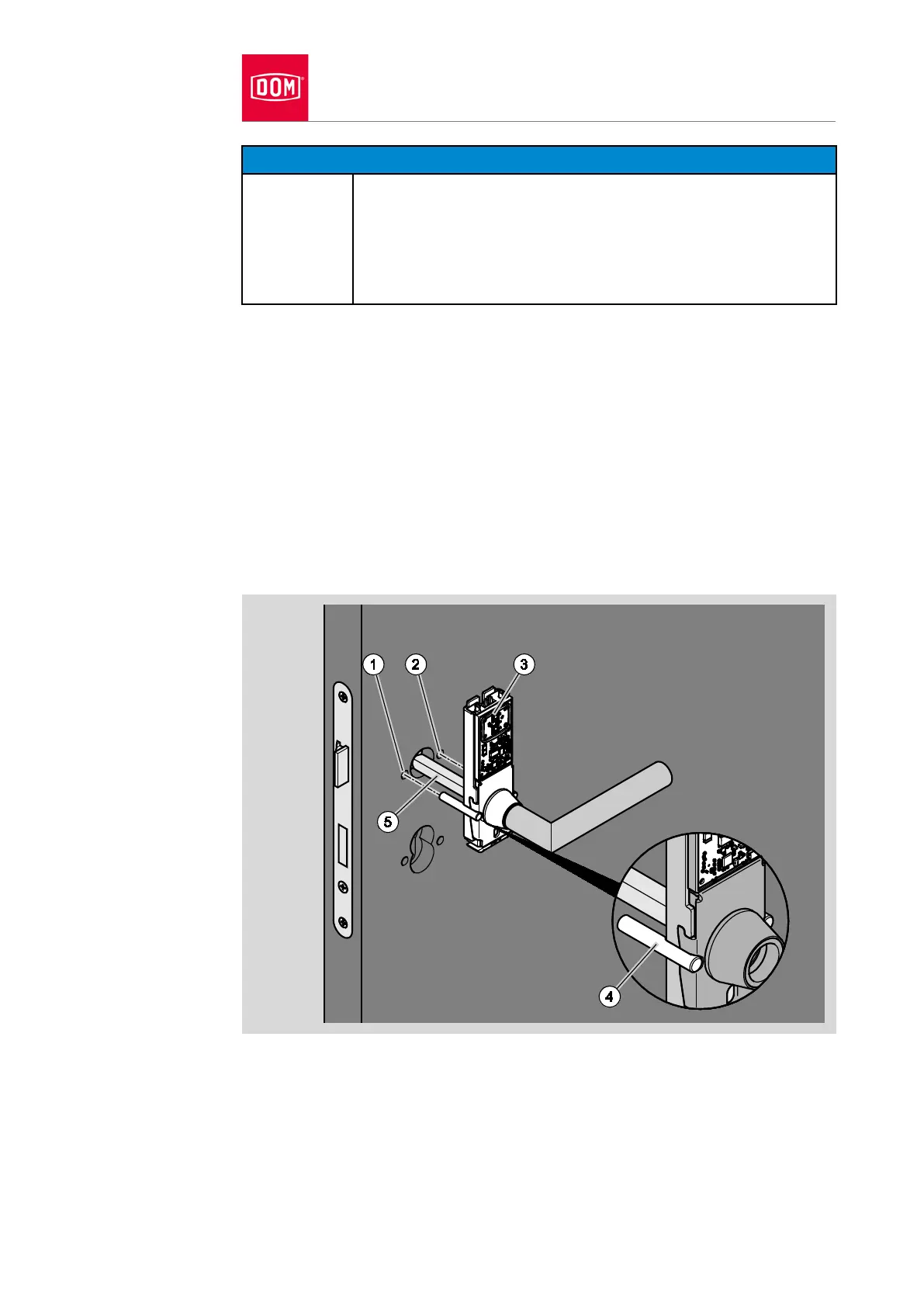

Attach the two catch sleeves (4) to the lateral gripping points of the
assembly profile as shown.
Place the assembly aid on the catch sleeves if available.
Insert the spindle (5) into the spindle hub.
Insert the catch sleeves into the drill holes (1, 2) on the door.
If necessary, move the catch sleeves until the catch sleeves can be inserted
easily into the drill holes.
Press the assembly profile (3) onto the door leaf.
Ensure that the lever handle on the inside handle is aligned correctly (see
page 58).
When using adapter sleeves, make sure that these are attached correctly
(see page 66).
Place the lever handle on the spindle protruding on the inside of the door.
