12
WN 059677 45532 - 11/2023
ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions

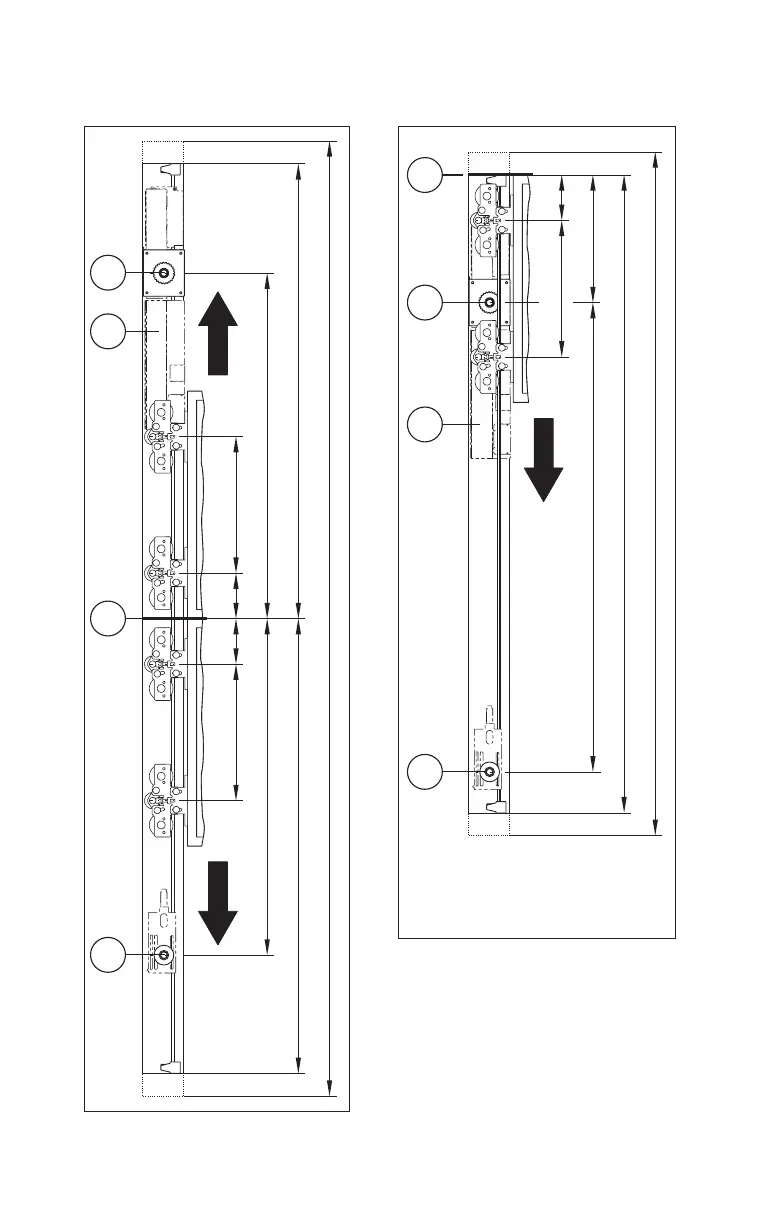

2-leaf unit
Fig.3
OL
100 100
CW/2 + 160 CW/2 + 160
CW/2 - 200CW/2 - 200
CW CW
1 2 43
1-leaf, left-opening unit
Fig.4
OL
100
CW + 425 CW - 460
CW - 200
2 x CW
1 243
(1) Center of the guide pulley
(2) Main closing edge
(3) DRIVE UNIT
(4) Center of the operator wheel
OL Operator length
CW Clear width
