ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions
4.10 Adjust the opening width
1. Slide the door leaves to the full opening width.
2. Push the end stops onto the carriers.

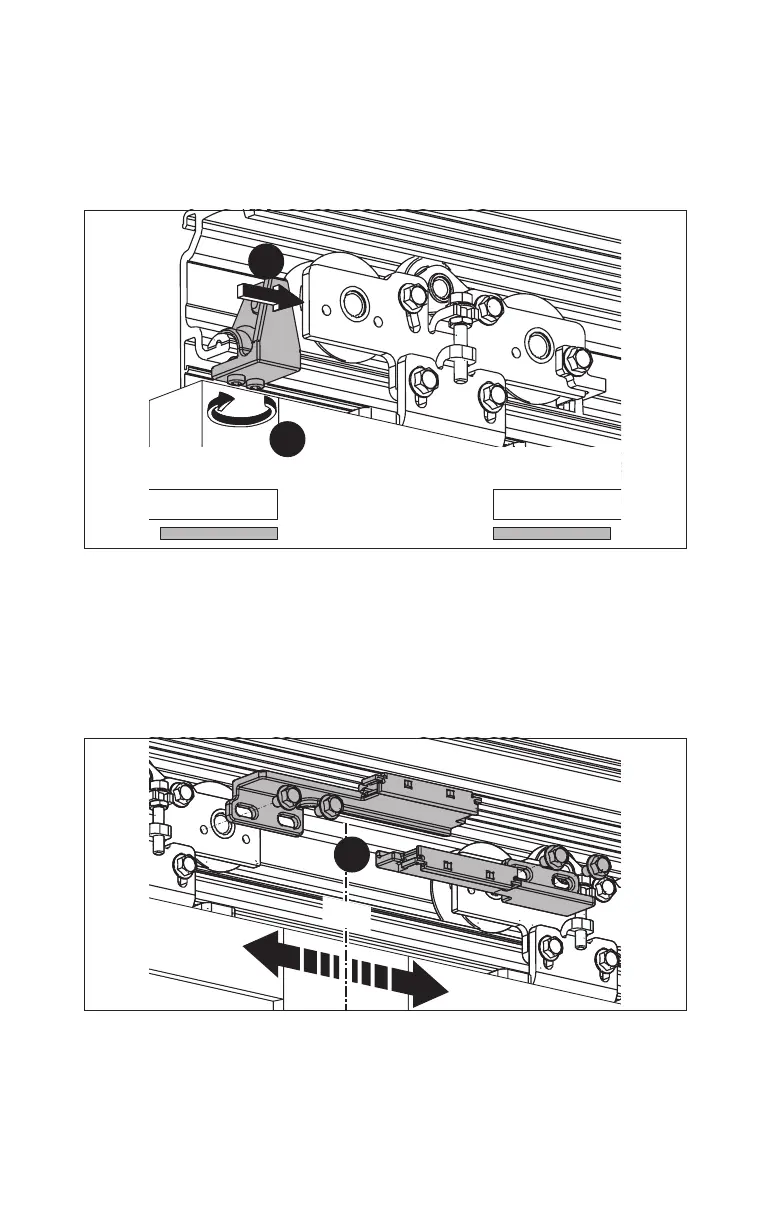

Fig.40
2.
3.
3. Tighten the end stops to 4Nm.
4.11 Mount the toothed belt engaging units
4.11.1 On 2-leaf units
1. Screw each toothed belt engaging unit to the carrier on the side of the main
closing edge.
Fig.41
1.
