Dormakaba ES 250 PRO - 4.23 Mount the internal cover

42
WN 059677 45532 - 11/2023
ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions

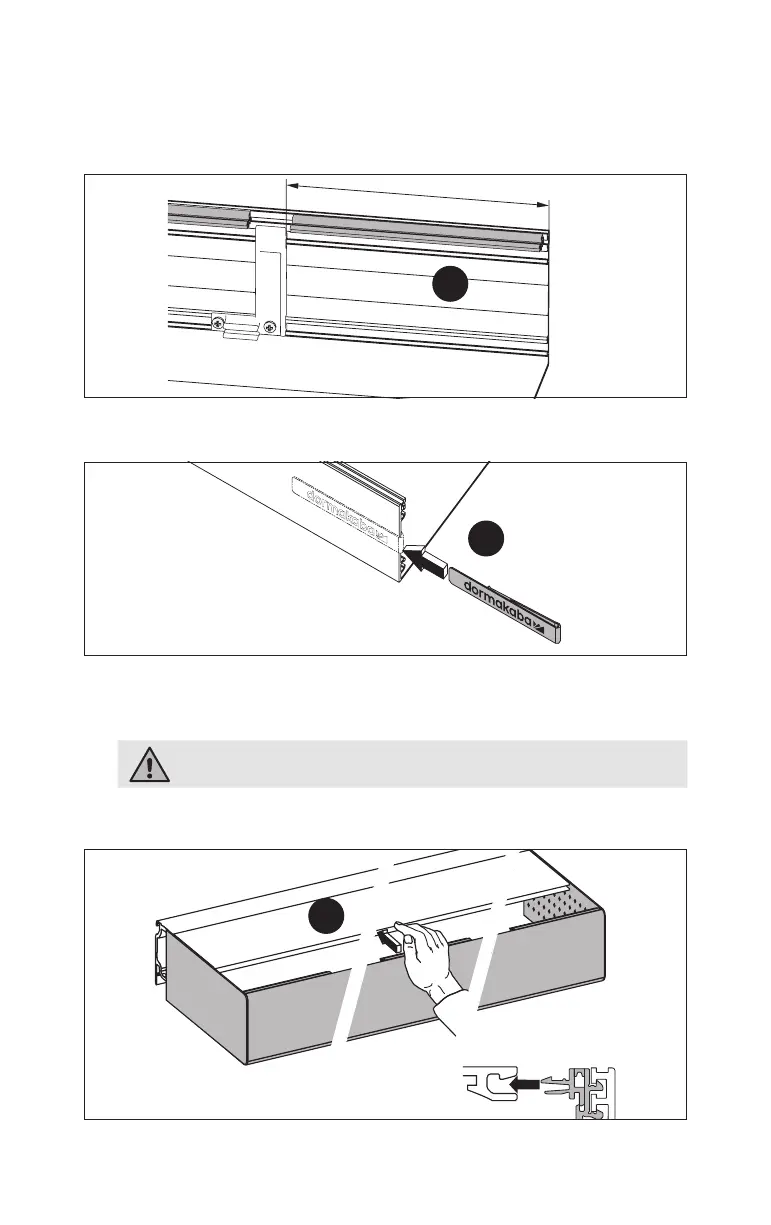

5. If the distance between the outer holder and the outer edge of the cladding is
more than 80mm, an additional piece of the hinge profile must be cut to
length and mounted.
Fig.69
> 80 mm
5.
6. Attach the dormakaba logo
Fig.70
6.
7. Mount the end plates according to the accompanying manual.
4.23 Mount the internal cover
Caution
Risk of injury due to careless working on a ladder!
1. Attach the internal cover by lightly tapping the palm of the hand on the
operator profile.
Fig.71
1.
