Mounting instructions
Attention
Do not mount the protective conductor in the area of movement!

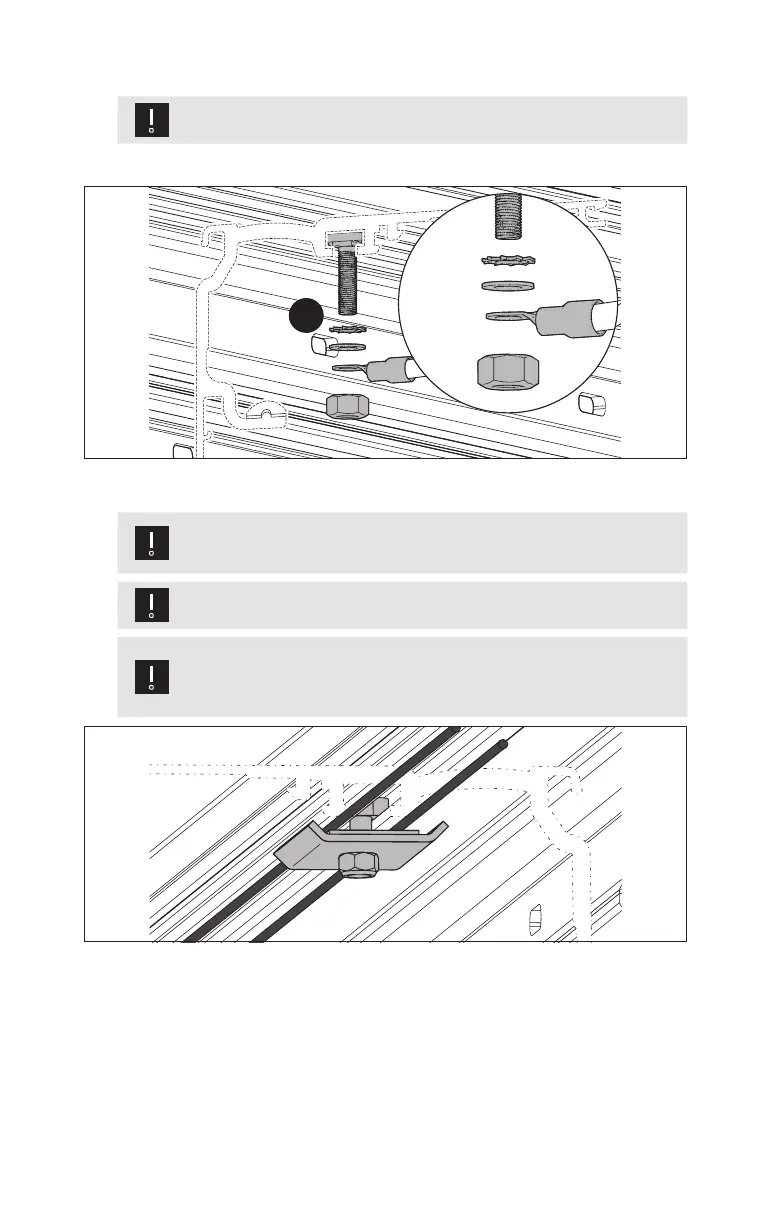

6. Mount the protective conductor in the operator profile.
Fig.75
6.
4.24 Mount and connect the accessories
Attention
The total output currents of all the components connected to the
operator must not exceed 2amps!
Attention
Connect the accessories in a de-energized state!
Attention
Lay all cables in the cable ducts or fasten them with cable clamps
to protect them from external influences (e.g. hot temperatures or
collisions)!
Fig.76
