Dormakaba ES 250 PRO - Carrier and door leaf installation

25
WN 059677 45532 - 11/2023
ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions
4.6 Mount the carriers
1. Mount the carriers on the door leaves according to the profile system manual.

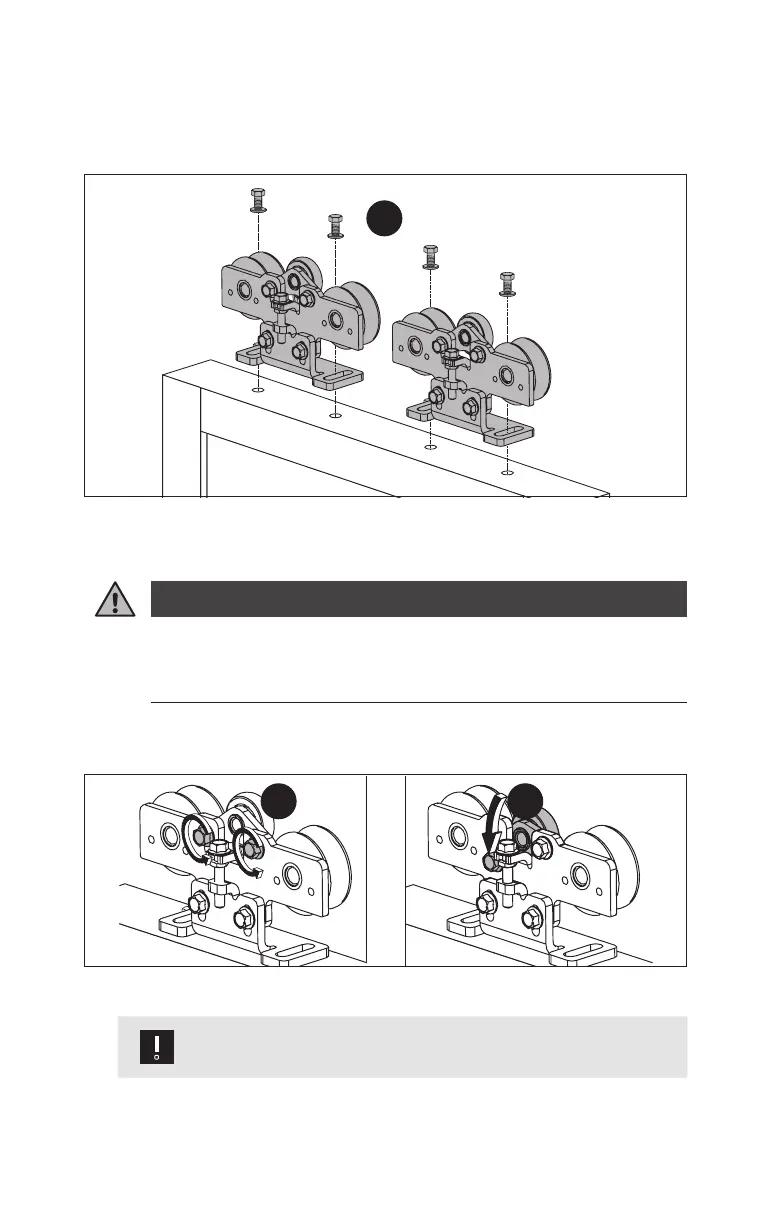

Fig.30
1.
4.7 Hook in the door leaf
WARNING
Risk of injury from heavy parts!
Lifting heavy parts can lead to injury.
• Heavy parts should be lifted and transported by at least 2 people.
1. On all carriers, loosen the 2 screws on the counter rollers.
Fig.31
1. 2.
2. Press the counter roller on the left screw downward.
3.
Attention
Before installing the carriers, ensure that the operator profile and
the track rail are clean!
