Dormakaba ES 250 PRO - Product description; Overview of components

7
WN 059677 45532 - 11/2023
ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions
3 Product description
3.1 Overview

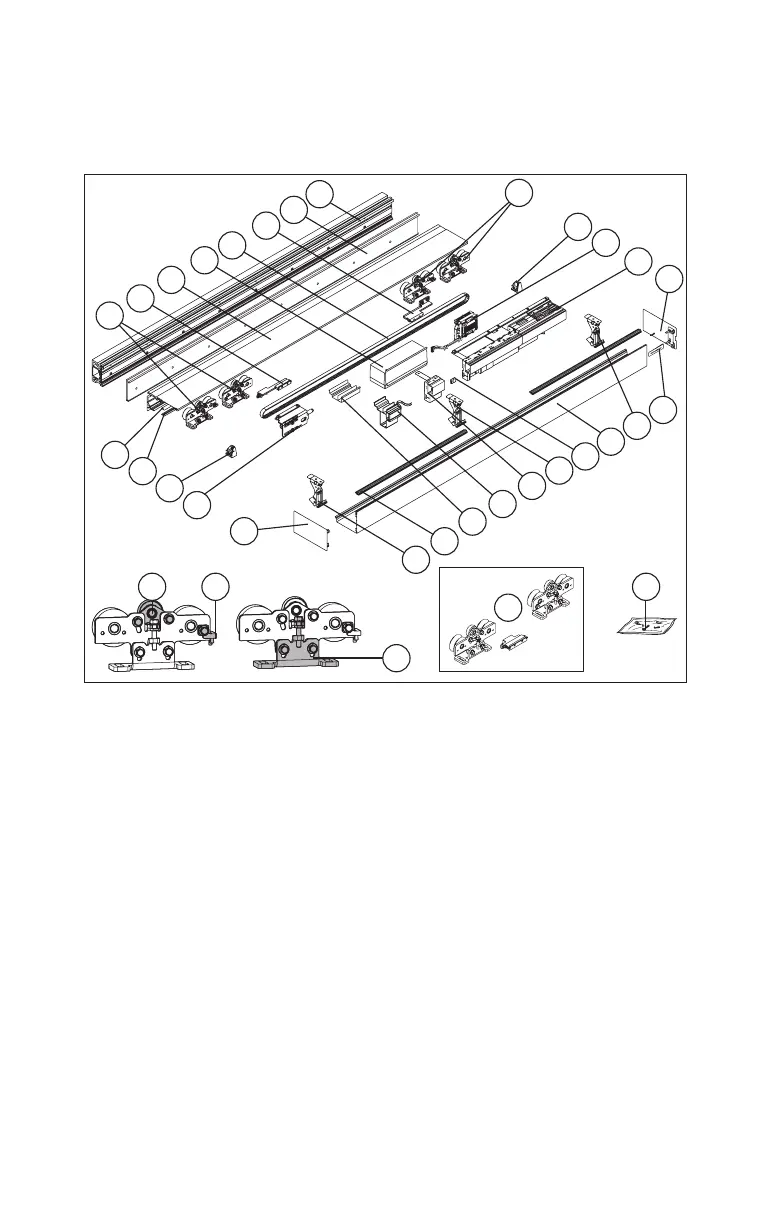

Fig.1
2
1
3
4
5
2
6
7
8
1
9
10
11
14
12
15
13
16
17
13
13
18
19
20
8
11
21
22
23 24 27
25
26
(1) Carriers
(2) Engaging unit
(3) Operator profile
(4) Battery
(5) Toothed belt
(6) Mounting profile
(7) LM girder
(8) End stop
(9) Locking device
(10) DRIVEUNIT
(11) End plate
(12) Logo clip
(13) Cover holders
(14) Internal cover
(15) Connector between the
control unit and the extension
module
(16) Extension module
(17) CIN (option)
(18) Cable duct
(19) Hinge profile
(20) Deflection device
(21) Rubber strip
(22) Track profile
(23) Counter roller
(24) Anti-static brush
(25) Adjustable brackets
(26) Carriers with engaging unit for
1-leaf units
(27) Bag of screws:
17508901150 for 2-leaf units
17509001150 for 1-leaf units
