6.3 Connection as an interlock
6.3.1 Standard interlock
The standard interlock can be set up as a 2- or 3-way interlock.
The inputs and outputs must be configured as follows for 2-way and 3-way
interlocks:
• Input 1 (Terminal 11): Lock interlock - Input
• Output 1 (Terminal o1): Lock interlock - Exit

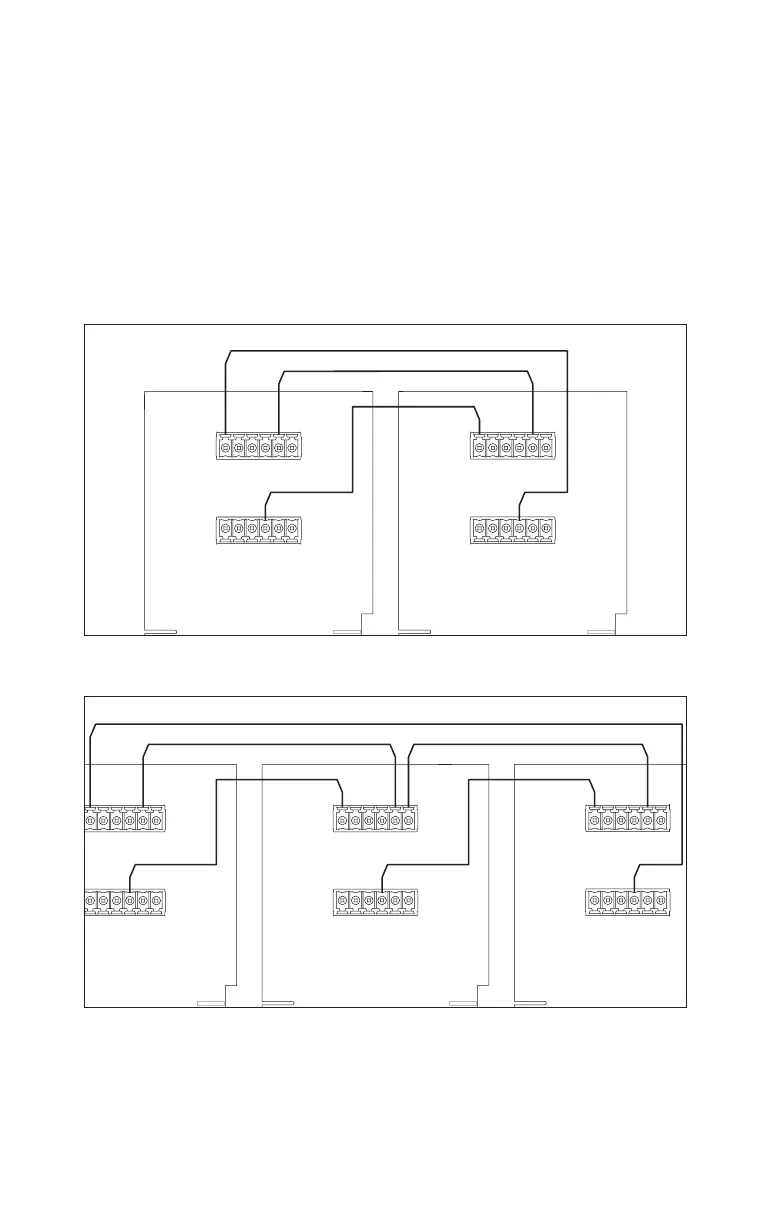

2-door standard interlock
Fig.95
11
12
13
14
3
3
1
1
o1
o2
o3
o4
11
12
13
14
3
3
1
1
o1
o2
o3
o4
I/O - Door 1
I/O - Door 2
3-door standard interlock
Fig.96
11
12
13
14
3
3
1
1
o1
o2
o3
o4
11
12
13
14
3
3
1
1
o1
o2
o3
o4
11
12
13
14
3
3
1
1
o1
o2
o3
o4
I/O - Door 2I/O - Door 1
I/O - Door 3
