6.3.2 Time interlock
The inputs and outputs must be configured as follows for 2-way and 3-way
interlocks:
• Input 1 (Terminal 11): Interlock pulse forwarding - Input
• Output 1 (Terminal o1): Interlock pulse forwarding - Output

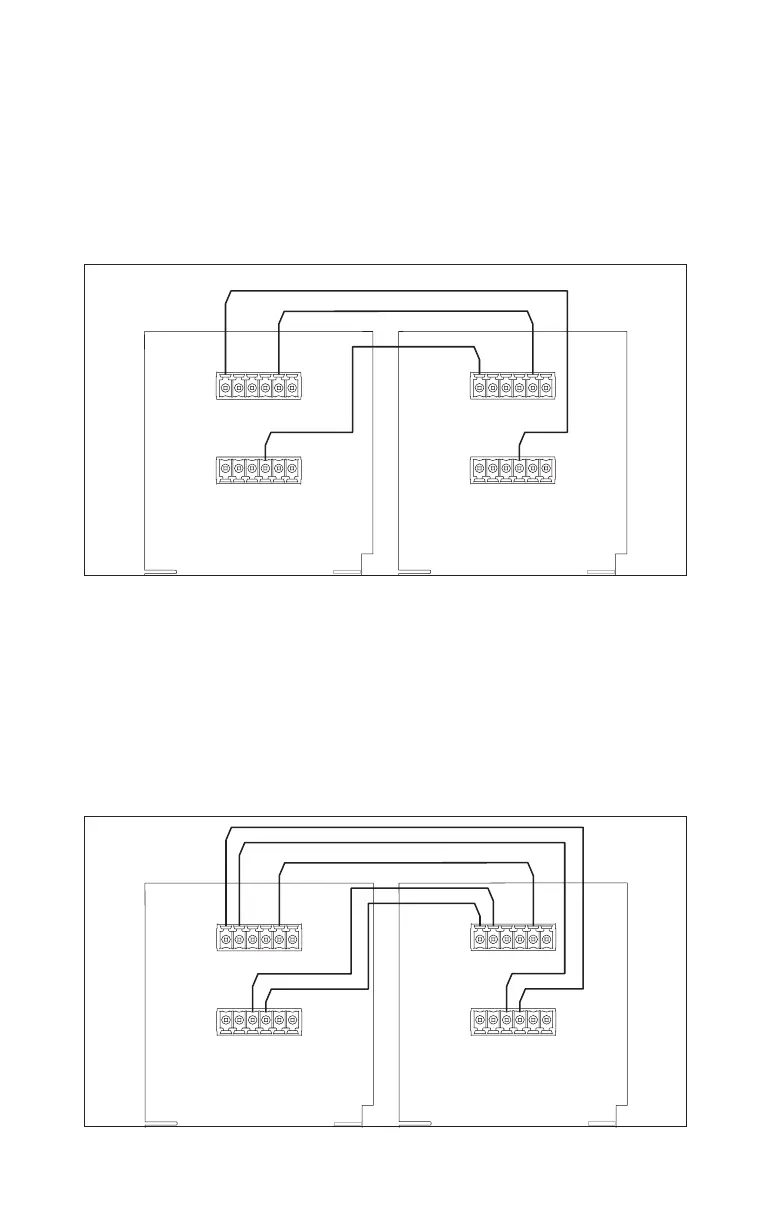

Time interlock
Fig.97
11
12
13
14
3
3
1
1
o1
o2
o3
o4
11
12
13
14
3
3
1
1
o1
o2
o3
o4
I/O - Door 1
I/O - Door 2
6.3.3 Interlock with impulse transmission
The inputs and outputs must be configured as follows for 2-way and 3-way
interlocks:
• Input 1 (Terminal 11): Lock interlock - Input
• Input 2 (Terminal 12): Interlock pulse forwarding - Input
• Output 1 (Terminal o1): Lock interlock - Exit
• Output 2 (Terminal o2): Interlock pulse forwarding - Output
Interlock with impulse transmission
Fig.98
11
12
13
14
3
3
1
1
o1
o2
o3
o4
11
12
13
14
3
3
1
1
o1
o2
o3
o4
I/O - Door 1
I/O - Door 2
