Dormakaba ES 250 PRO - Page 29

29
WN 059677 45532 - 11/2023
ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions

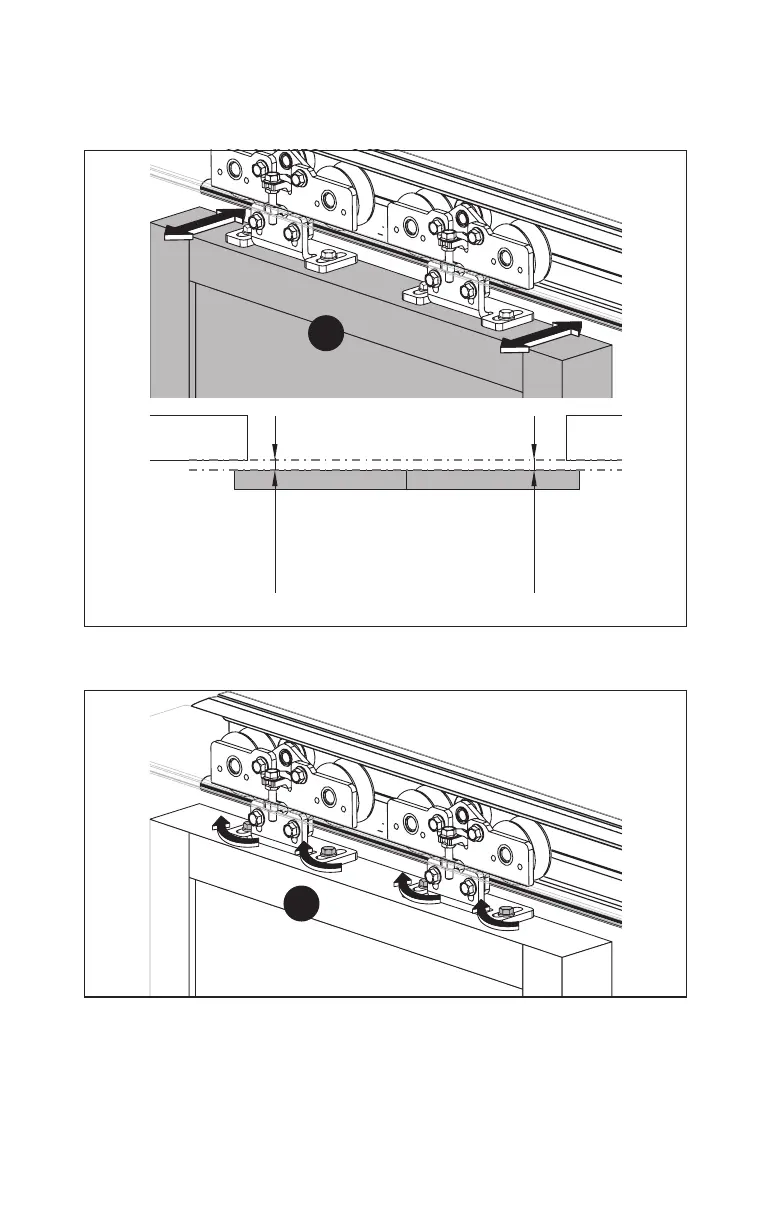

5. Position the door leaves so that they are aligned and the distance between
door leaf and wall/side panel is a maximum of 8mm.
Fig.38
5.
max. 8mm max. 8mm
6. Screw the adjustable brackets tightly to the door leaf.
Fig.39
6.
