ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions
4.11.2 On 1-leaf, left-opening units
1. Screw the toothed belt engaging unit onto the carrier.

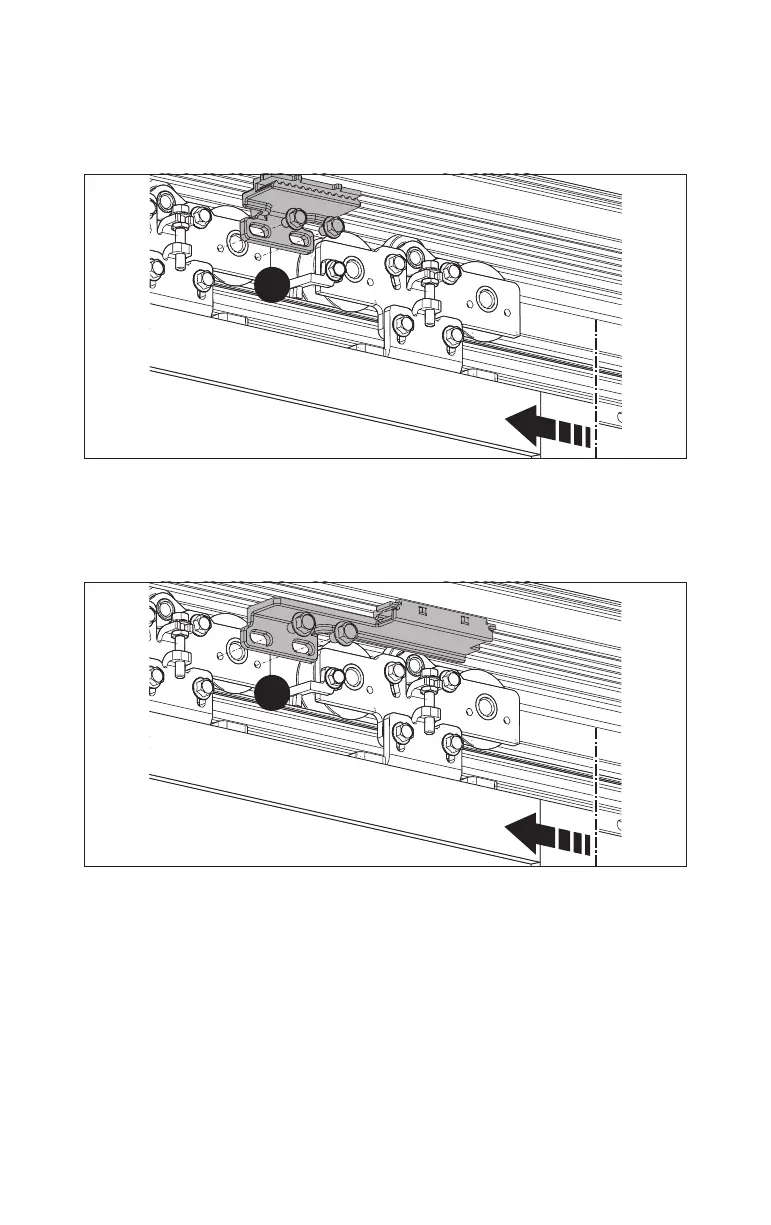

Fig.42
1.
MCE
4.11.3 On 1-leaf, left-opening units if space is required for a
protective panel or manual release
1. Screw the toothed belt engaging unit onto the carrier.
Fig.43
1.
MCE
