ES 250 PRO/ES 250 PRO FST
ES 400 PRO/ES 400 PRO FST
Mounting instructions

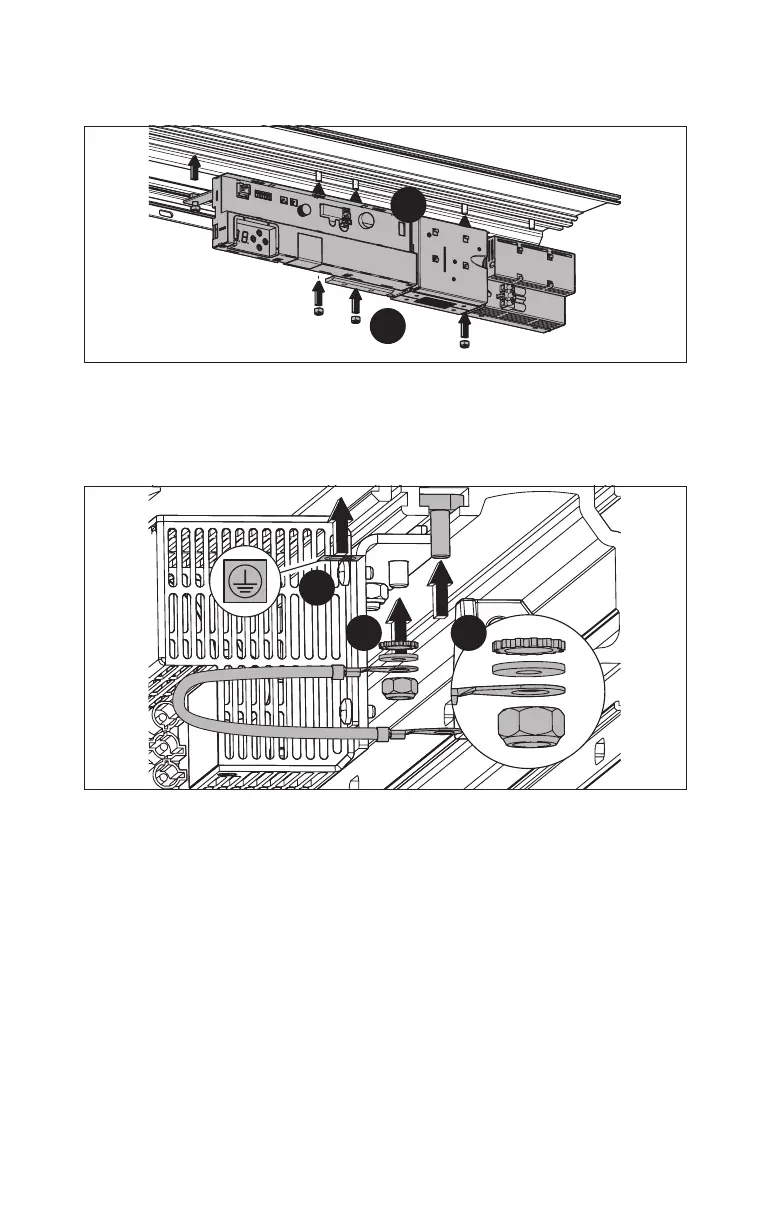

3. Place the DRIVEUNIT on the threaded bolts on the attachment strip.
Fig.47
3.
4.
4. Tighten the DRIVEUNIT with the nuts and the hammerhead screw. Do not
screw the rightmost nut onto the bolt yet.
5. Screw the protective conductor onto the right-hand bolt.
Fig.48
5. 6.
7.
6. Screw the protective conductor onto the track profile.
7. Stick the protective conductor label onto the track profile.
