Installation
13 10099206-AA

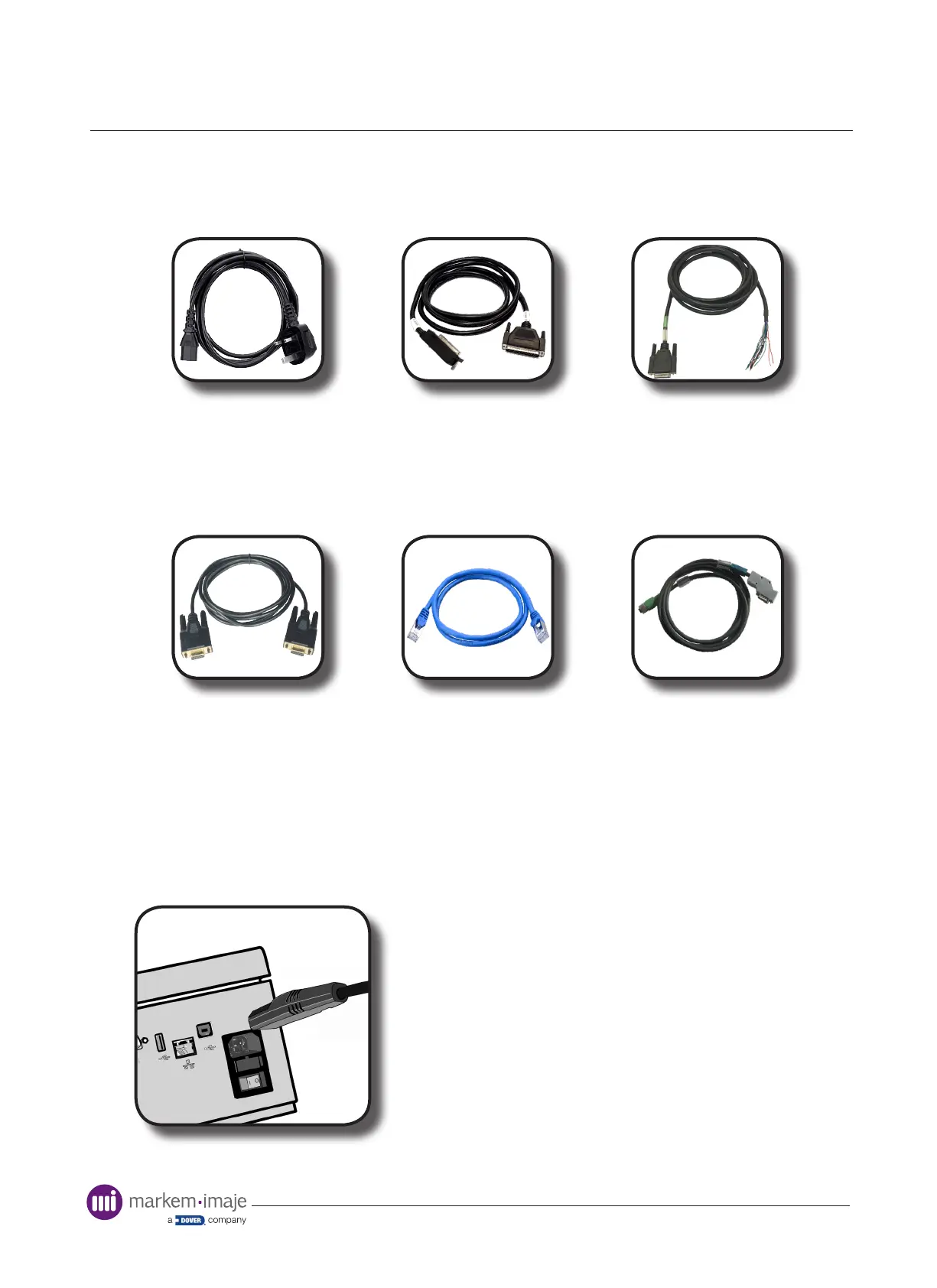

Cables
Mains Power Printer Power and Signal I/O
Provides mains power to the
Controller
Available in 1,2,5 and 10 meter
lengths, the cable provides
connection between the Printer and
Controller
Provides connection between the
Controller and host system signals
RS232 Comms. Network Encoder
Optional cable used for connection
to external devices
Optional Ethernet cable used to
connect the Controller to a network
Provides substrate tracking signals
to the Printer
Connecting the Controller
All cables must be inserted into Controller and Printer and rmly secured before switching on
the unit.
Power Cable
Switch the power switch to the ‘O’ position and
connect the Mains Power cable
To Next Page
