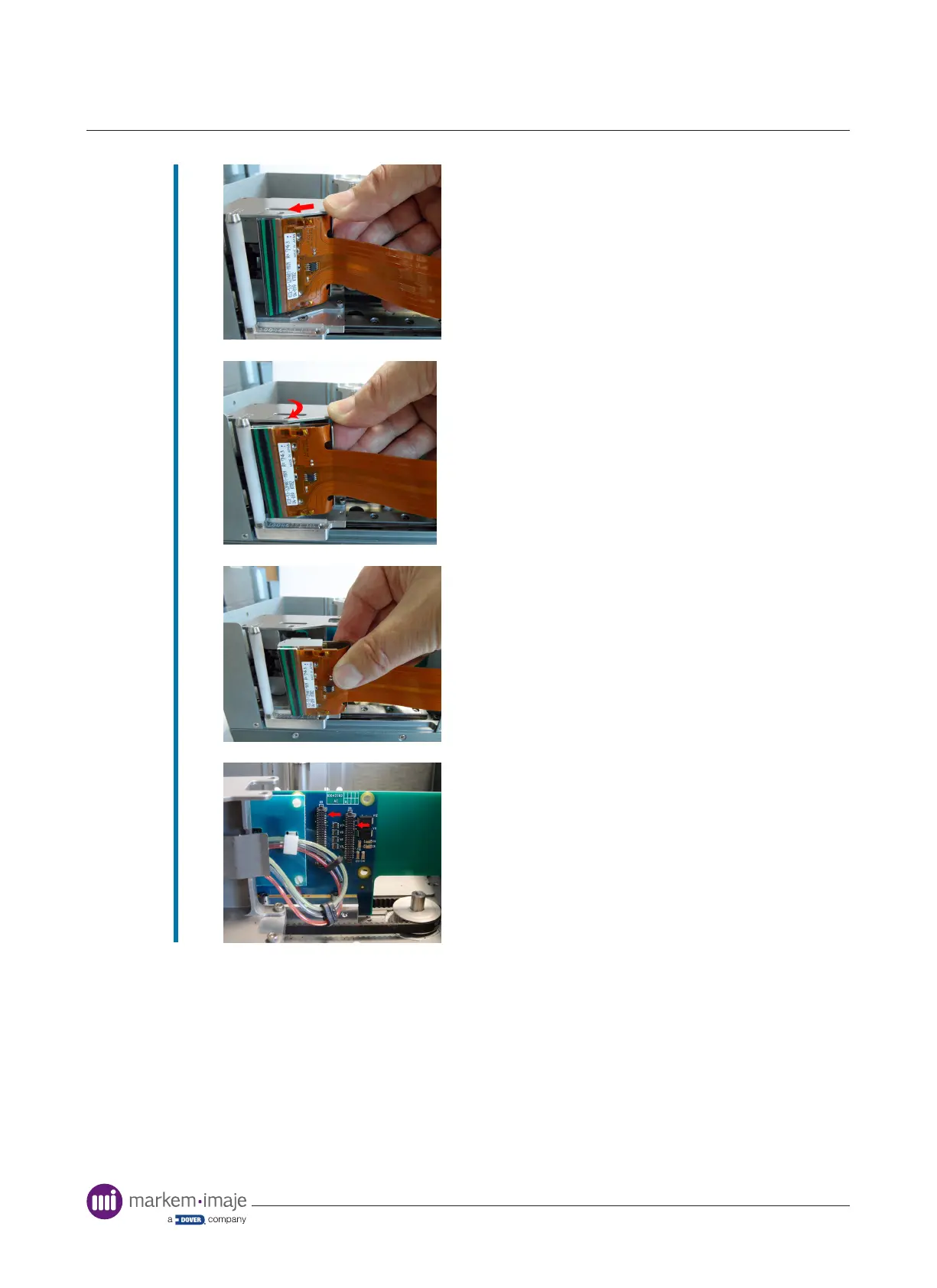

Push the printhead forward towards the peel
roller to release the catch
4
Swing the printhead out from the print module.
5
Remove the printhead from the print module.
6
Note the different connectors:
X4 - 60-way connector
X5 - 40-way connector
