Removing the worn printhead (Shuttled Printer)
1

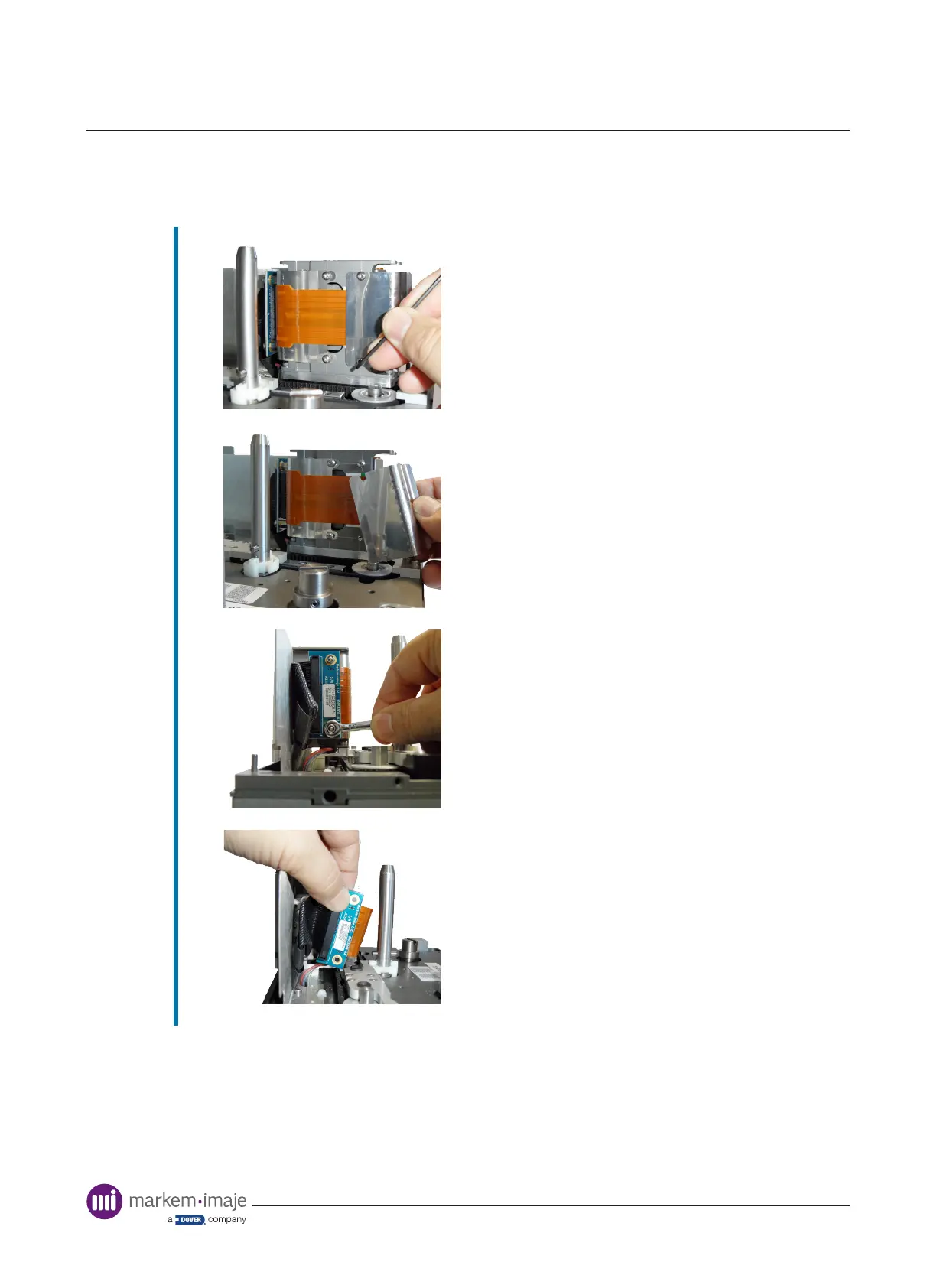

Remove the retaining screws from the
printhead ribbon cable guide
2
Remove the ribbon cable guide
3
Remove the two retaining nuts from the
ribbon connector block
4
Disconnect the ribbon cable from the PCB
