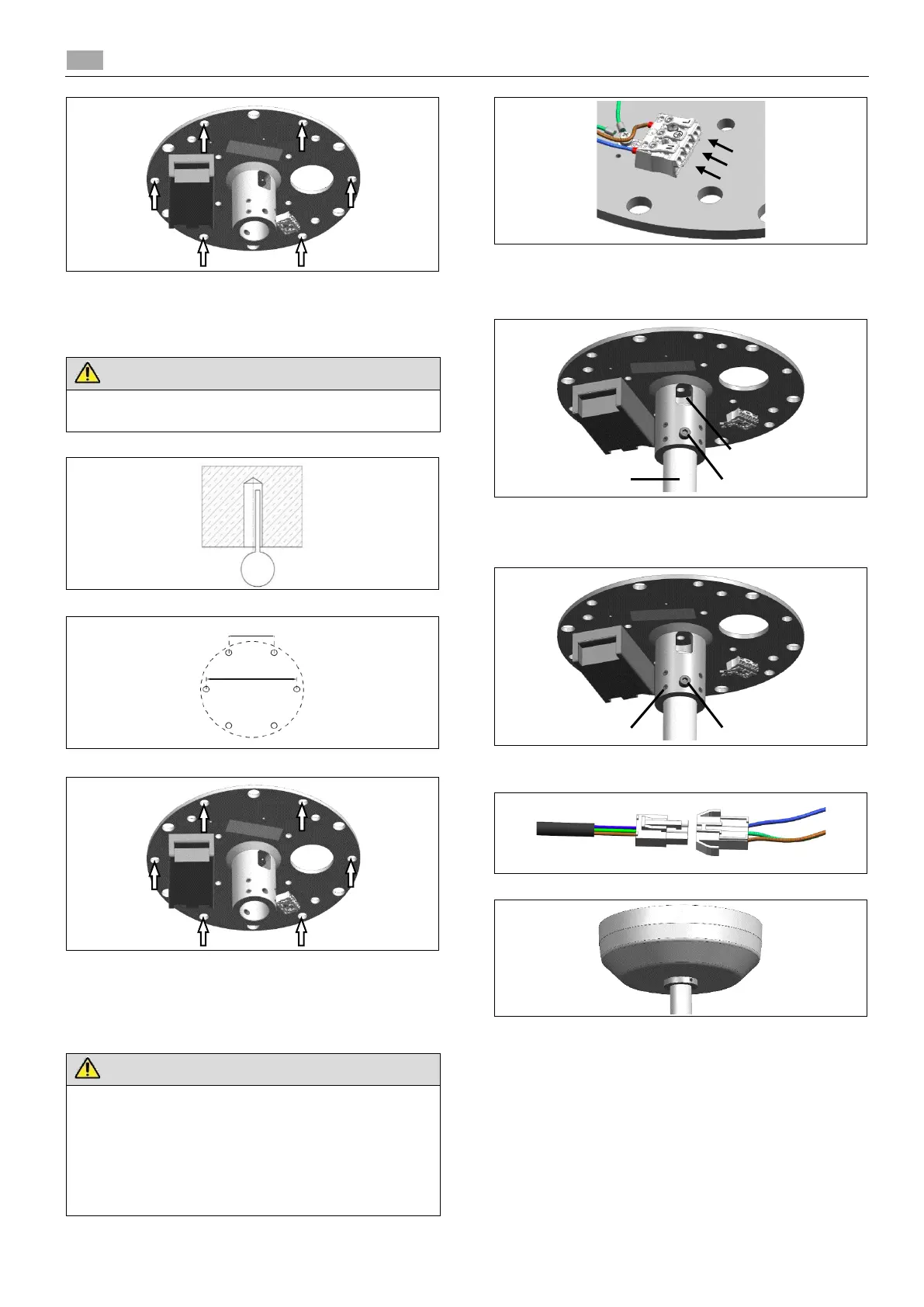

Draw 6 drill marks.
Observe the position of opening “A” for connecting the
current.
Wear safety equipment according to the tool manufacturer’s
instructions.
Drill holes and blow out with bellows.
Check the hole distances.
Hold the ceiling bracket against the ceiling and hammer
in the fastening anchor.
Tighten the fastener according to manufacturer’s
instructions.
Risk of death from electric shock.
Do not turn on the power supply before the luminaire
head has been installed.
This device must only be connected to a power grid
with a protective earth conductor (PE) to prevent the
risk of electric shock
Connect the power.
3.4. Installing the ceiling tube
Pull the ceiling tube cable through the opening “B” of the
ceiling holder.
Insert the ceiling tube “A” into the ceiling holder.
Tighten the safety screw “C”and the M8 nut.
Tighten the M8 safety screw “C” and the nut (20 Nm).
Tighten all 4 grub screws “D” (5 Nm).
Connect the ceiling tube plug to the power supply plug.
Slide the ceiling cover and ring over the ceiling bracket
and screw them tightly.
