30

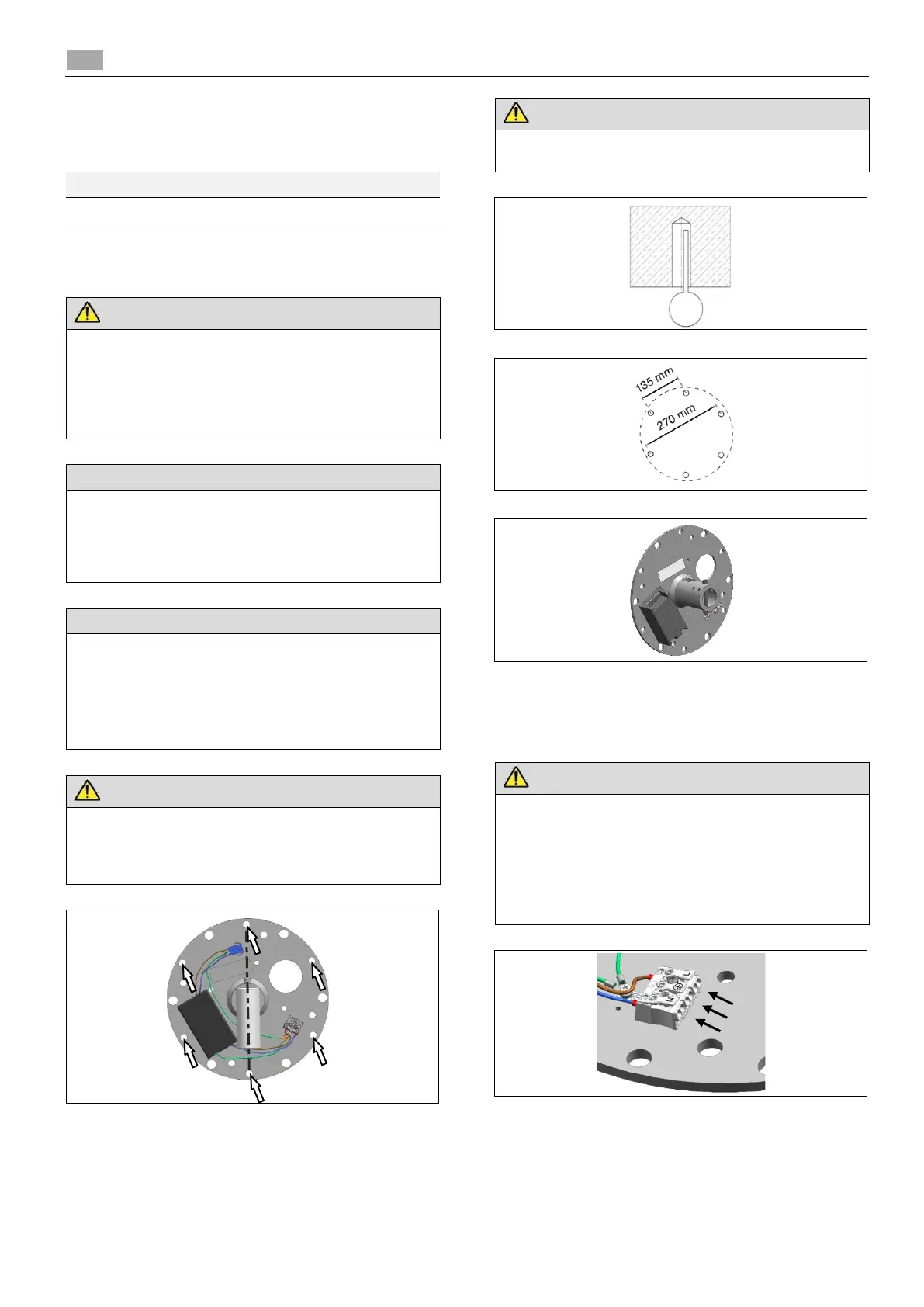

4. INSTALLATION: Polaris 50 Wall
4.1 Workload data
4.2. Installing the wall holder
Fastening hardware is not delivered with the appliance.
Assembly by qualified personnel
Assembly must only be carried out by qualified
personnel. Lack of appropriate knowledge may pose
a danger to life.
Two people are needed for assembly.
Determine which fasteners to use from the workload
data table
Before assembly, make sure the rod dimensions are
correct.
Make sure the wall holder is in the correct position.
The wall holder must be aligned according to the axis
in the image.
Misalignment will compromise mechanical safety.
We recommend using a counterplate on lightweight
construction walls (not included with delivery).
Risk of death from electric shock.
All poles of the luminaire must be disconnected from
the power supply by an lockable external switch.
Draw 6 drill marks.
Observe the position of opening “A” for connecting the
current.
Wear safety equipment according to the tool manu-
facturer’s instructions.
Drill holes and blow out with bellows.
Check distances.
Position the wall bracket on the wall and hammer in the
fastening anchor.
Tighten the fastener according to manufacturer’s
instructions.
Risk of death from electric shock.
Do not turn on the power supply before the luminaire
head has been installed.
This device must only be connected to a power grid
with a protective earth conductor (PE) to prevent the
risk of electric shock
