Risk of injury if the spring-balanced arm should jump
Do not remove the transport guard until after the
luminaire head has been installed.

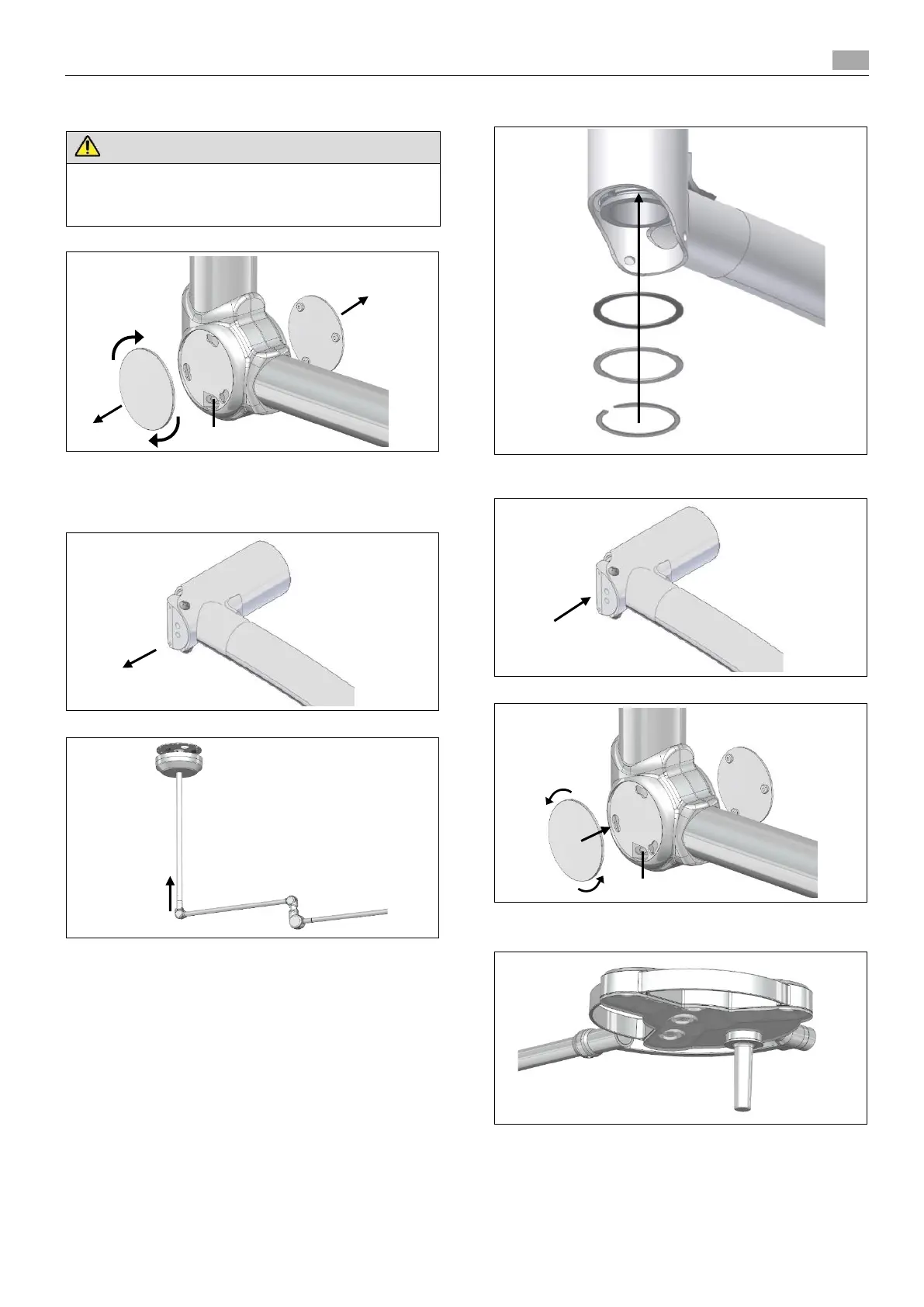

Carefully turn the covers “A” and remove them from the
joint cover “B”.
Loosen the screws “C” and remove the joint covers “B”
from the transverse boom.
Carefully remove the rotary plug “D”.
Insert the ceiling arm into the ceiling tube.
After inserting the ceiling arm, first install the ring “A”,
then the locking ring “B”, followed by the end rings “C”.
Carefully insert the rotary plug “D”.
Attach the joint covers “B” and fit screws “C”.
Insert the covers “A” and turn to secure.
To proceed with the installation of the luminaire head,
see Chapter 6.
