31

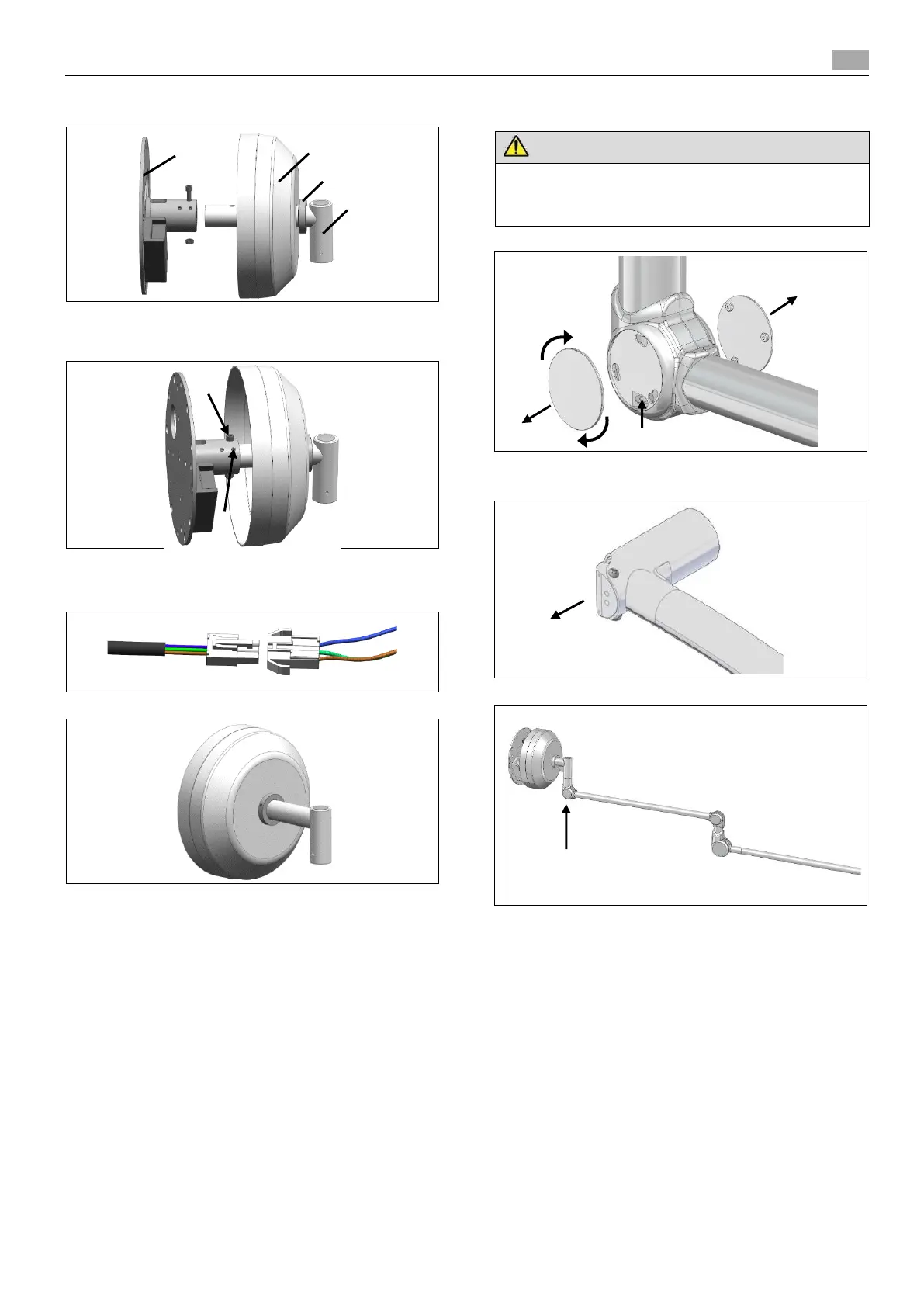

Insert wall bracket “A” (with end ring “C” and cover “B” in
position) into the wall holder “D” and simultaneously pull
the plug through the rectangular cut-out.
When the wall bracket is vertically aligned, install it with
the M8 locking screw and nut “E” and tighten (20 Nm).
Tighten all 4 grub screws “F” (5 Nm).
Connect the ceiling tube plug to the power supply plug.
Push the cover against the wall and screw tightly with the
ring (0.5 Nm)
4.3 Installing the wall mounting arm
Risk of injury if the spring-balanced arm should jump
Do not remove the transport guard until after the
luminaire head has been installed.
Carefully loosen the cover “A”.
Loosen the screws “C” and remove the joint covers “B”.
Carefully remove the rotary plug “D”.
Install the wall mounting arm.
