Dräger Polaris 50

ENG
33

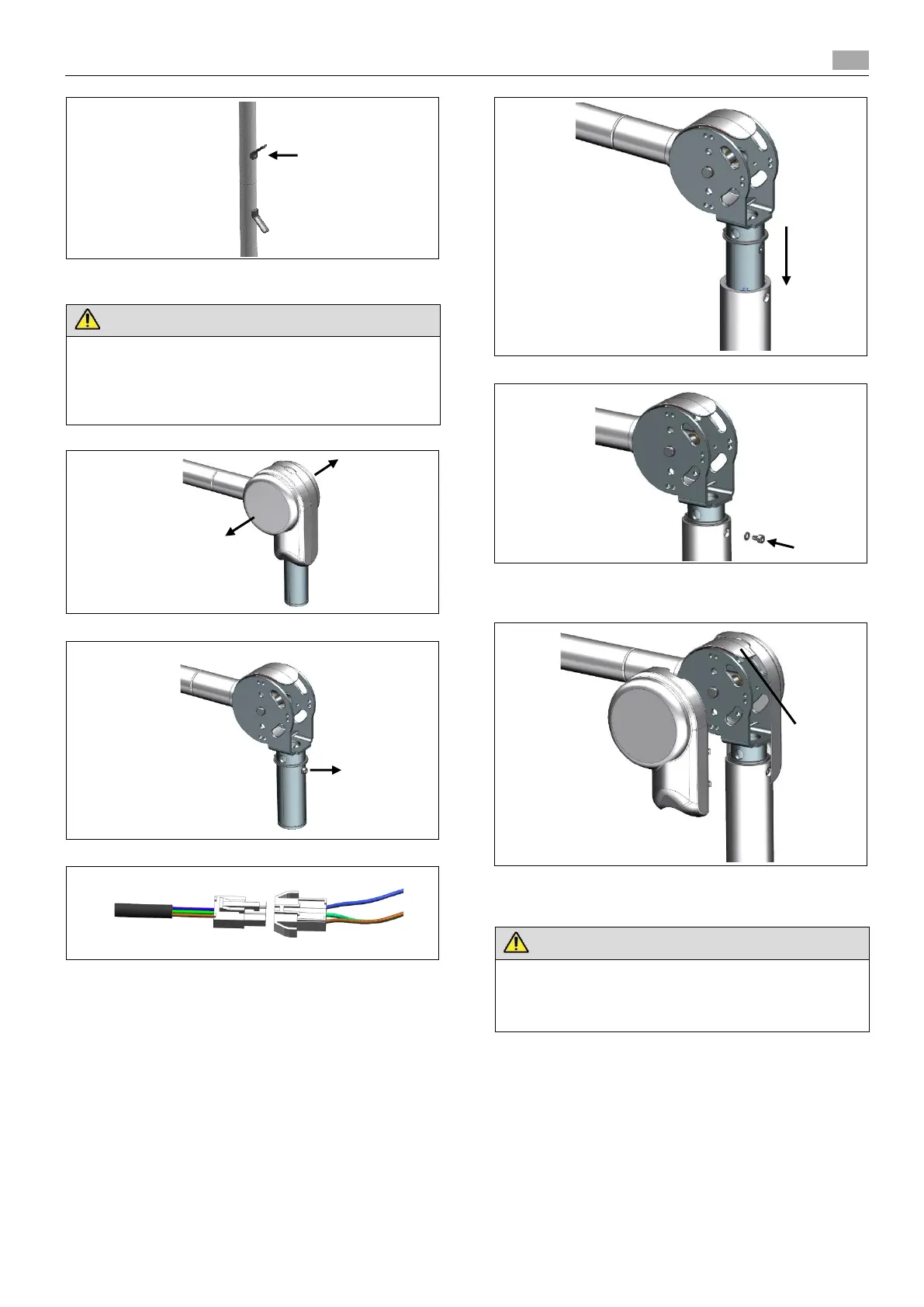

 Tighten the cable holder using a type 3 Allen screw on
the upper support tube (2.4 Nm).
WARNING
Never unscrew the upper cable holder — risk of injury.
 If both cable holders are unscrewed, the connecting
piece will come loose and fall, which can cause
personal injury and damage to the cable and device.
 Carefully pull off the covers “A”.
 Remove the M4 Allen screw with the washer.
 Push the plug for the spring-balanced arm against the
plug for the upper support tube until they click together.
 Attach the spring-balanced arm to the support tube.
 Align the thread in the spring-balanced arm in relation to
the opening in the support tube, insert the M4 Allen
screw and washer, and then tighten.
 Reattach the covers “A” one after the other. Make sure
that the cover “B” is positioned in the groove of both
covers “A”.
DANGER
Risk of death from electric shock.
 Do not turn on the power supply before the luminaire
head has been installed.
A
A
B
