Draytek VigorPro 5300 - LED Indicators and Connectors; For Vigorpro5300

VigorPro5300 Series User’s Guide
2
1
1
.
.
2
2
L
L
E
E
D
D
I
I
n
n
d
d
i
i
c
c
a
a
t
t
o
o
r
r
s
s
a
a
n
n
d
d
C
C
o
o
n
n
n
n
e
e
c
c
t
t
o
o
r
r
s
s
1
1
.
.
1
1
.
.
1
1
F
F
o
o
r
r
V
V
i
i
g
g
o
o
r
r
P
P
r
r
o
o
5
5
3
3
0
0
0
0

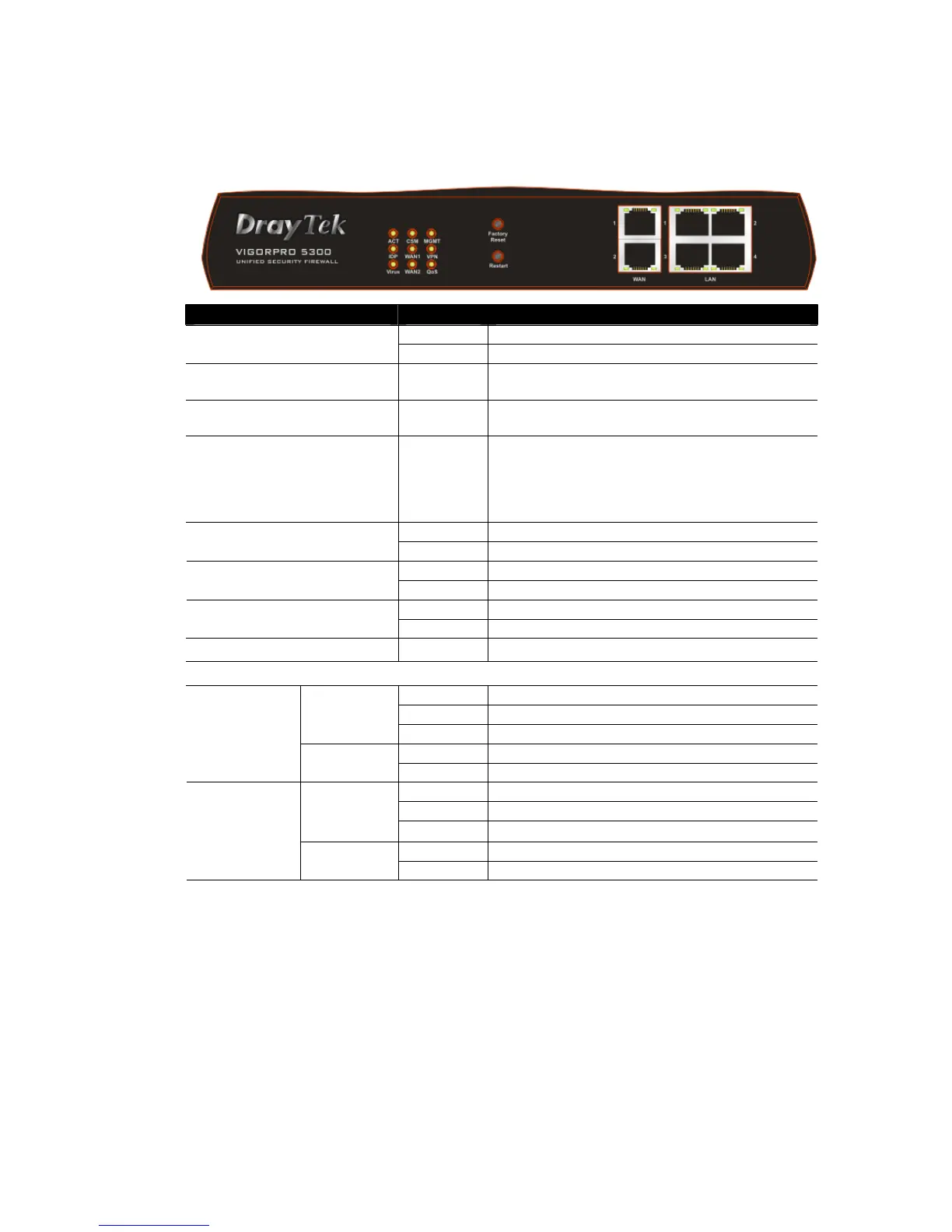

LED Status Explanation
Blinking The router is powered on and running normally. ACT (Activity)
Off The router is powered off.
IDP (Intrusion Detection and
Prevention)
On
(Yellow)
The anti-intrusion function is enabled.
Virus On
(Yellow)
The anti-virus function is enabled.
CSM On The profile of CSM (Content Security
Management) for IM/P2P, URL content filter
and/or Web content filter application is enabled
from Firewall >> General Setup or Filter Setup.
(Such profile is established under CSM menu).
On The WAN1 or WAN2 port is connected. WAN1/2
Blinking It will blink while transmitting data.
On The router is managed by Telnet. MGMT
Blinking It will blink while being managed by IE browser.
On The VPN tunnel is launched. VPN
Off The VPN tunnel is closed.
QoS
On The QoS function is active.
LED on Connector
On The port is connected.
Off The port is disconnected.
Left LED
Blinking The data is transmitting.
On The port is connected with 100Mbps.
WAN 1/2
Right LED
Off The port is connected with 10Mbps
On The port is connected.
Off The port is disconnected.
Left LED
Blinking The data is transmitting.
On The port is connected with 100Mbps.
LAN 1/2/3/4
Right LED
Off The port is connected with 10Mbps
