VigorPro5300 Series User’s Guide
112

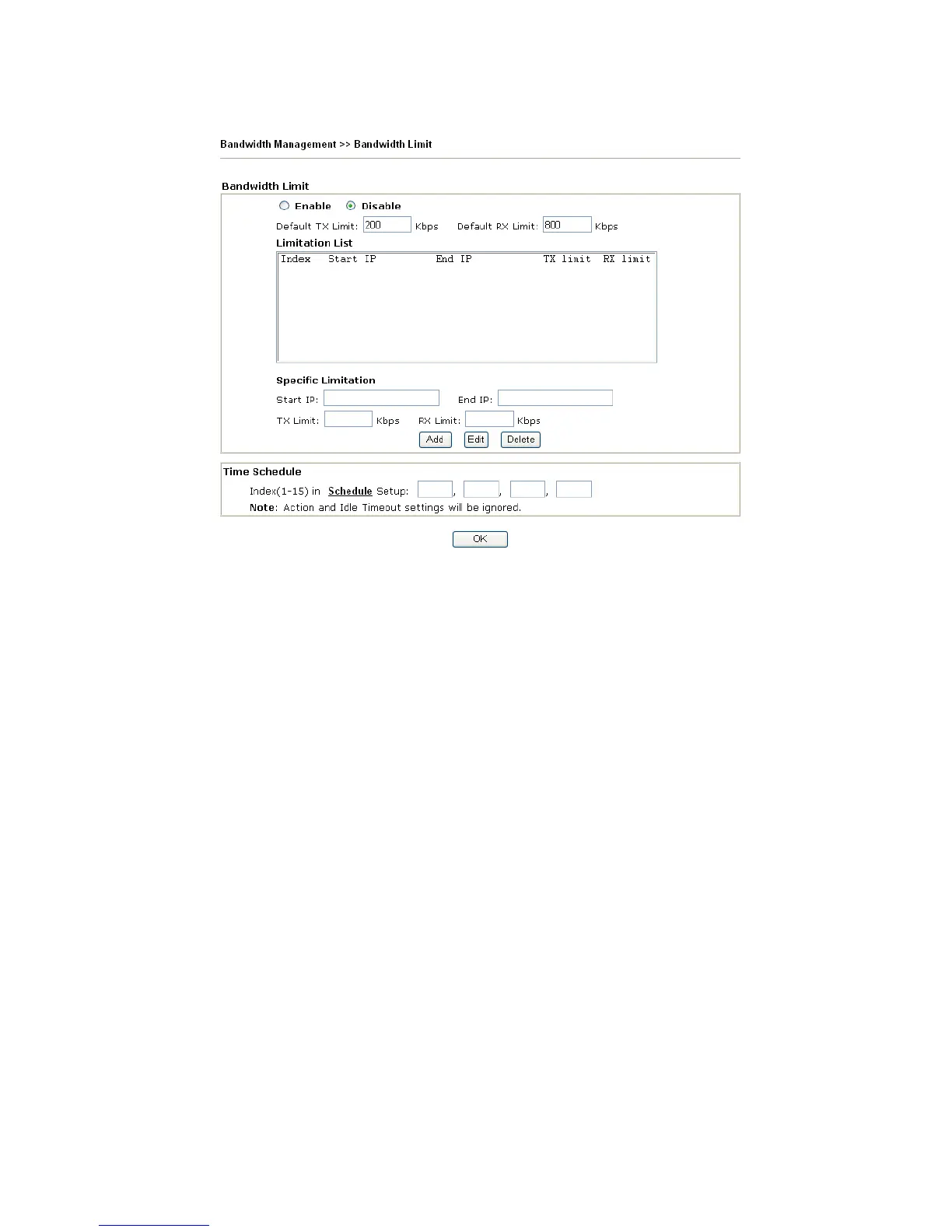

In the Bandwidth Management menu, click Bandwidth Limit to open the web page.
To activate the function of limit bandwidth, simply click Enable and set the default upstream
and downstream limit.
Enable Click this button to activate the function of limit bandwidth.
Disable Click this button to close the function of limit bandwidth.
Default TX limit Define the default speed of the upstream for each computer in
LAN.
Default RX limit Define the default speed of the downstream for each computer
in LAN.
Limitation List Display a list of specific limitations that you set on this web
page.
Start IP Define the start IP address for limit bandwidth.
End IP Define the end IP address for limit bandwidth.
TX limit Define the limitation for the speed of the upstream. If you do
not set the limit in this field, the system will use the default
speed for the specific limitation you set for each index.
RX limit Define the limitation for the speed of the downstream. If you
do not set the limit in this field, the system will use the default
speed for the specific limitation you set for each index.
Add Add the specific speed limitation onto the list above.
Edit Allows you to edit the settings for the selected limitation.
Delete Delete the selected settings existing on the limitation list.
Index (1-15) in Schedule
Setup
You can type in four sets of time schedule for your request.
All the schedules can be set previously in Application –
Schedule web page and you can use the number that you
