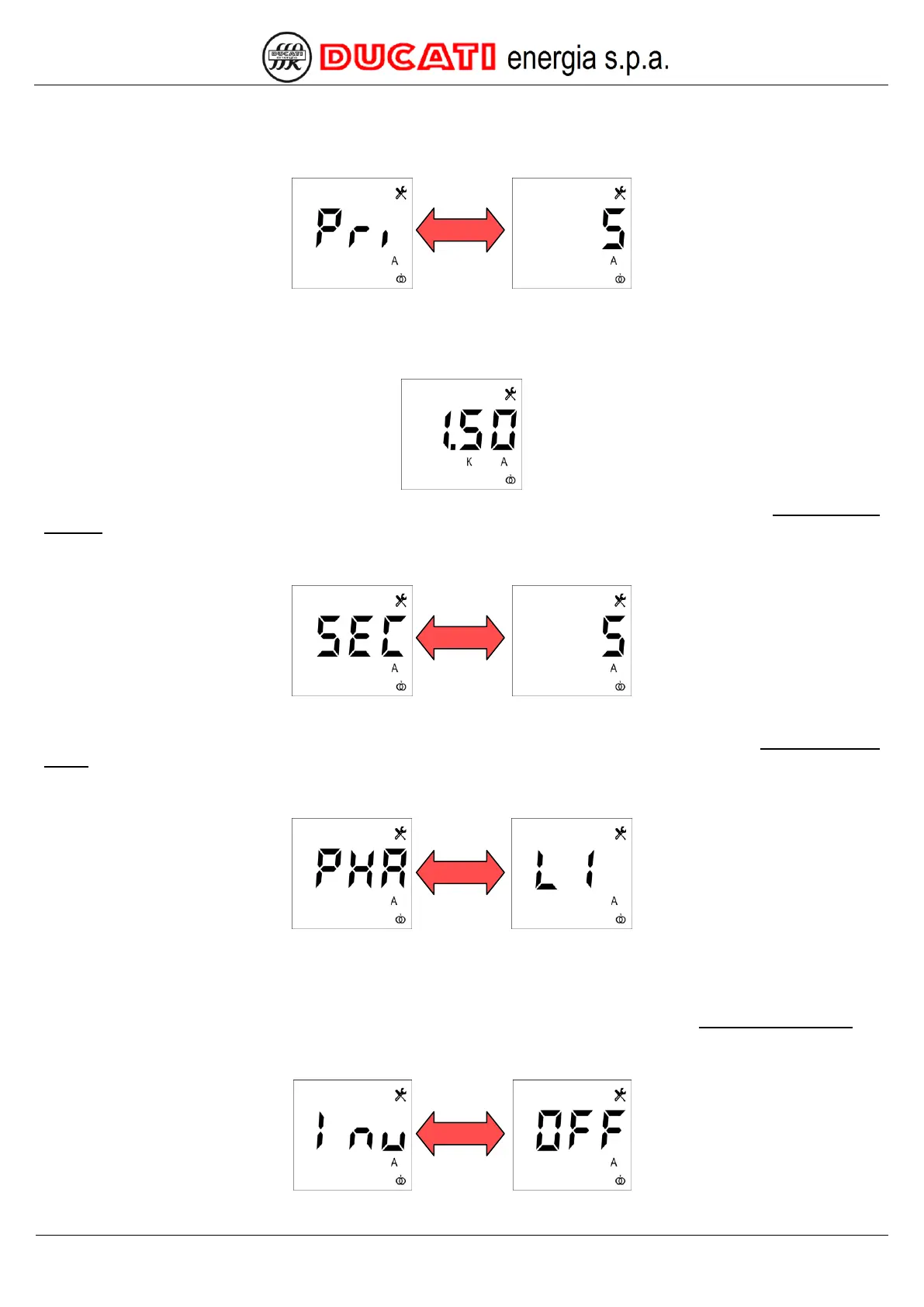

7.1 Connection settings
7.1.1 CT primary winding
The default value is "5". The permitted range for the parameter is [5÷10000].
Example1: if the CT transformer size is 200/5, enter the "200" value.
Example 2: if the CT primary winding used is equal to 1500A, set:
If a permitted value is entered, the controller will move to the next parameter setting screen (CT secondary
winding).
7.1.2 CT secondary winding
The default value is "5". The permitted range for the parameter is [1÷5].
If a permitted value is entered, the controller will move to the next parameter setting screen (Current reading
phase).
7.1.3 Current reading phase
The default value is "L1". The possible permitted values for the parameter are [L1; L2; L3].
If the CT was connected to the R phase select L1; if the CT was connected to the S phase select L2; if the CT was
connected to the T phase select L3.
After parameter is confirmed, the controller will move to the next parameter setting screen (Reversal towards CT).
7.1.4 Reversal towards CT
The default value is "OFF". The possible permitted values for the parameter are [ON; OFF].
