Ducati R5 - Maximum Number of Bank N Insertions (N=1,2,3,4,5) Alarm

MU-MID-R5-D-ENG.doc
Page58 of 70
If, parameter P.25 – Alarm masking management (Chap. 7.6) has been set to mask the alarms under defined
operating conditions, the previous screen will be temporarily displayed for 3sec. The alarm will then automatically go back
to the first screen of the Measurement Menu by displaying the cosphi value, but not the alarm icon. The alarm will be
anyway present in the Current Alarm Menu.
STATISTICS
There is not a specific statistics for this alarm, in the Statistics Menu (Chap. 8.4) it will nevertheless possible to
display the estimated reactive power value of bank n.
DEACTIVATION
The alarm cannot be deactivated, once a bank is declared as broken, it will not be possible to use it again on the R5
Controller.
RESET
This alarm cannot be manually reset from the Current Alarm Menu. Bank n and, consequently, the relevant breakage
alarm can be reset through the Reset Menu (Chap. 8.6).
8.5.2.12 Maximum number of bank n insertions (n=1,2,3,4,5) alarm
ACTIVATION
The alarm maximum number of bank n insertions (n=1,2,3,4,5) is activated if the number of insertions InS of bank
n reaches the maximum number equal to 100000.
MANAGEMENT
The activation of the alarm maximum number of bank n insertions (n=1,2,3,4,5) will not affect the status of the
inserted banks.
DISPLAYING

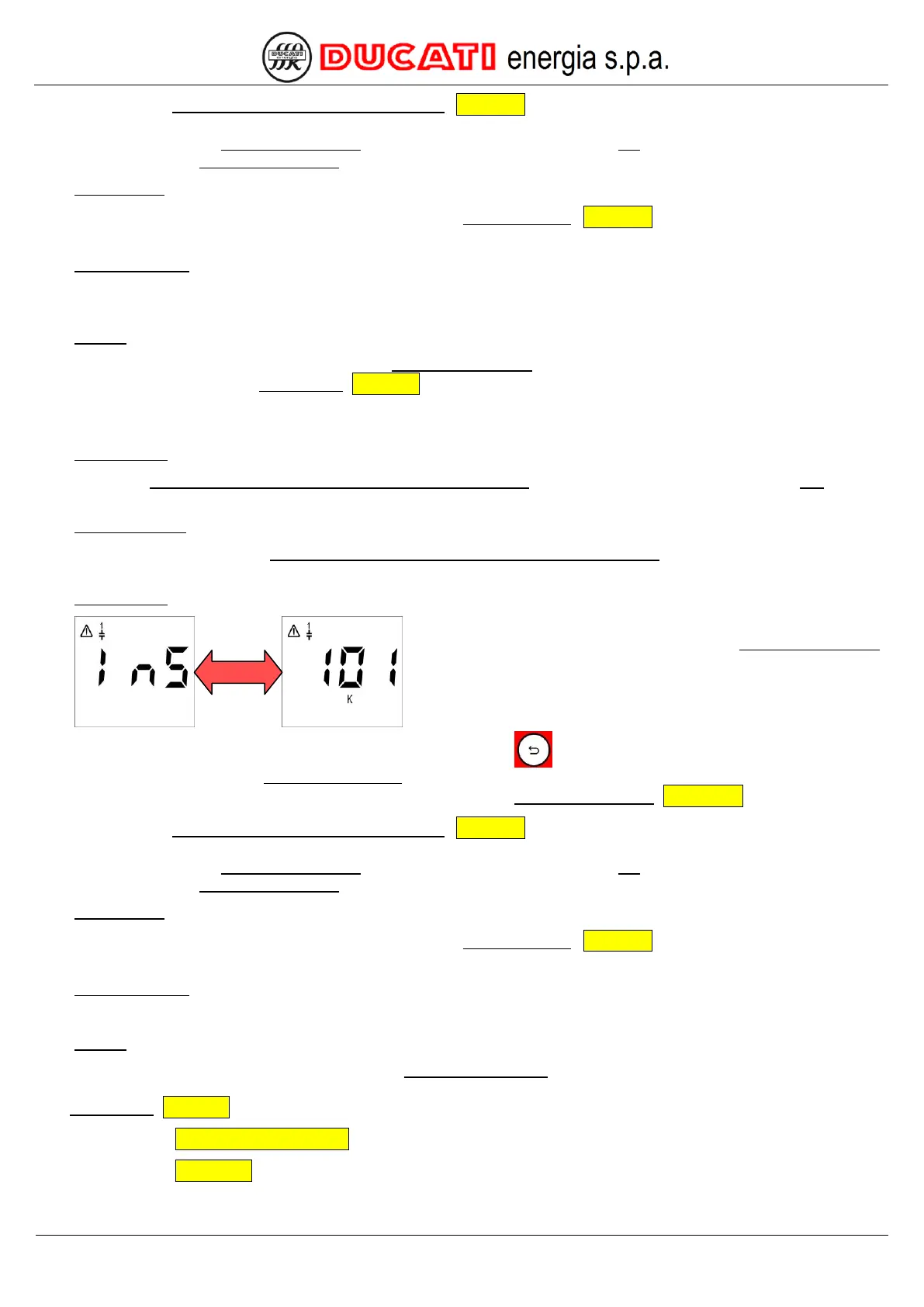

Regardless of the current displaying, the alarm will be indicated
with the displaying of the relevant page of the Current alarm menu
that will be alternately shown with the numerical value (truncated to
the thousands) corresponding to bank number of insertions (in the
example, the number of insertions for bank 1 has been exceeded
and there is a value of 101000 insertions).
The Controller will stay in the above-mentioned screen until key is pressed for more than 2sec (the alarm is
anyway active). Afterwards, the Measurement Menu will be automatically displayed and will show the cosphi value and
the alarm icon on the top left. The alarm will be anyway active in the Current Alarm Menu (Chap. 8.5.1).
If, parameter P.25 – Alarm masking management (Chap. 7.6) has been set to mask the alarms under defined
operating conditions, the previous screen will be temporarily displayed for 3sec. The alarm will then automatically go back
to the first screen of the Measurement Menu by displaying the cosphi value, but not the alarm icon. The alarm will be
anyway present in the Current Alarm Menu.
STATISTICS
There is not a specific statistics for this alarm, in the Statistics Menu (Chap. 8.4) it will nevertheless possible to
display the number of insertions of bank n.
DEACTIVATION
Alarm cannot be deactivated.
RESET
This alarm cannot be manually reset from the Current Alarm Menu. Bank n or directly the number of insertions of
bank n can be reset and, consequently, the relevant alarm for the maximum number of insertions can be reset through
the Reset Menu (Chap. 8.6).
GO BACK TO USING THE CONTROLLER
GO BACK TO CONTENTS
