8.2 Display and key description
8.2.1 Display

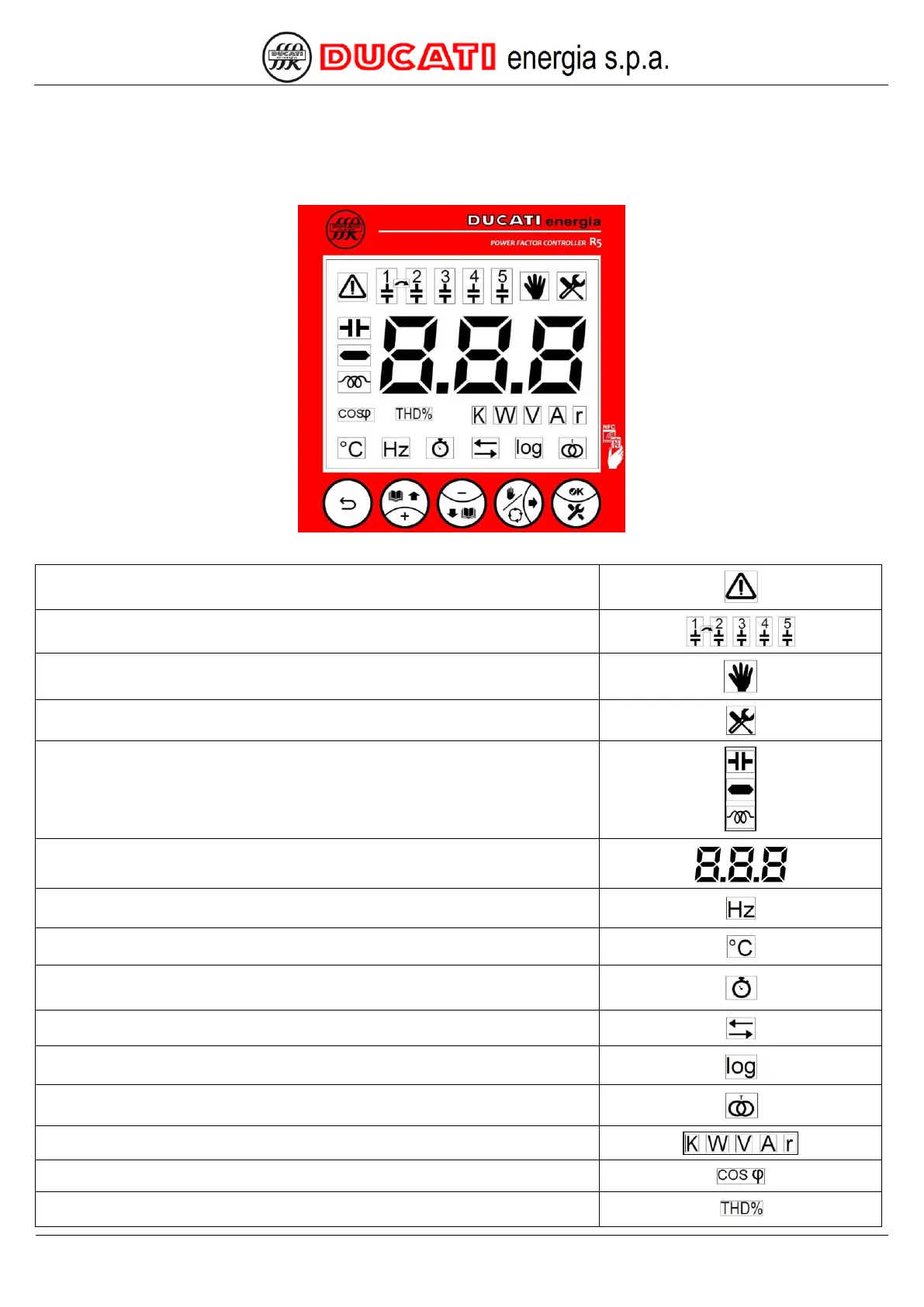

The display includes both icons and alphanumerical fields.
The following table lists them with the relevant meanings:
Alarm Presence or Alarm Parameter.
Capacitor Status or Capacitor Parameter.
Manual Mode active.
Configuration setting pages.
Measurement/parameter sign.
Measurement/parameter value or label.
Network frequency measurement or parameter.
Controller temperature measurement or parameter.
Setting parameters of instrument/bank/system times or waiting for the
reconnection and/or manoeuvre with the available bank time to elapse.
Cogeneration mode (4-Quadrants) active or Cogeneration parameter.
(If flashing) RS485/Radio 868MHz communication in progress.
CT and VT Transformer parameters.
Measurement unit.
Cosphi measurement or parameter.
THD% measurement or parameter.
