4 INSTALLATION

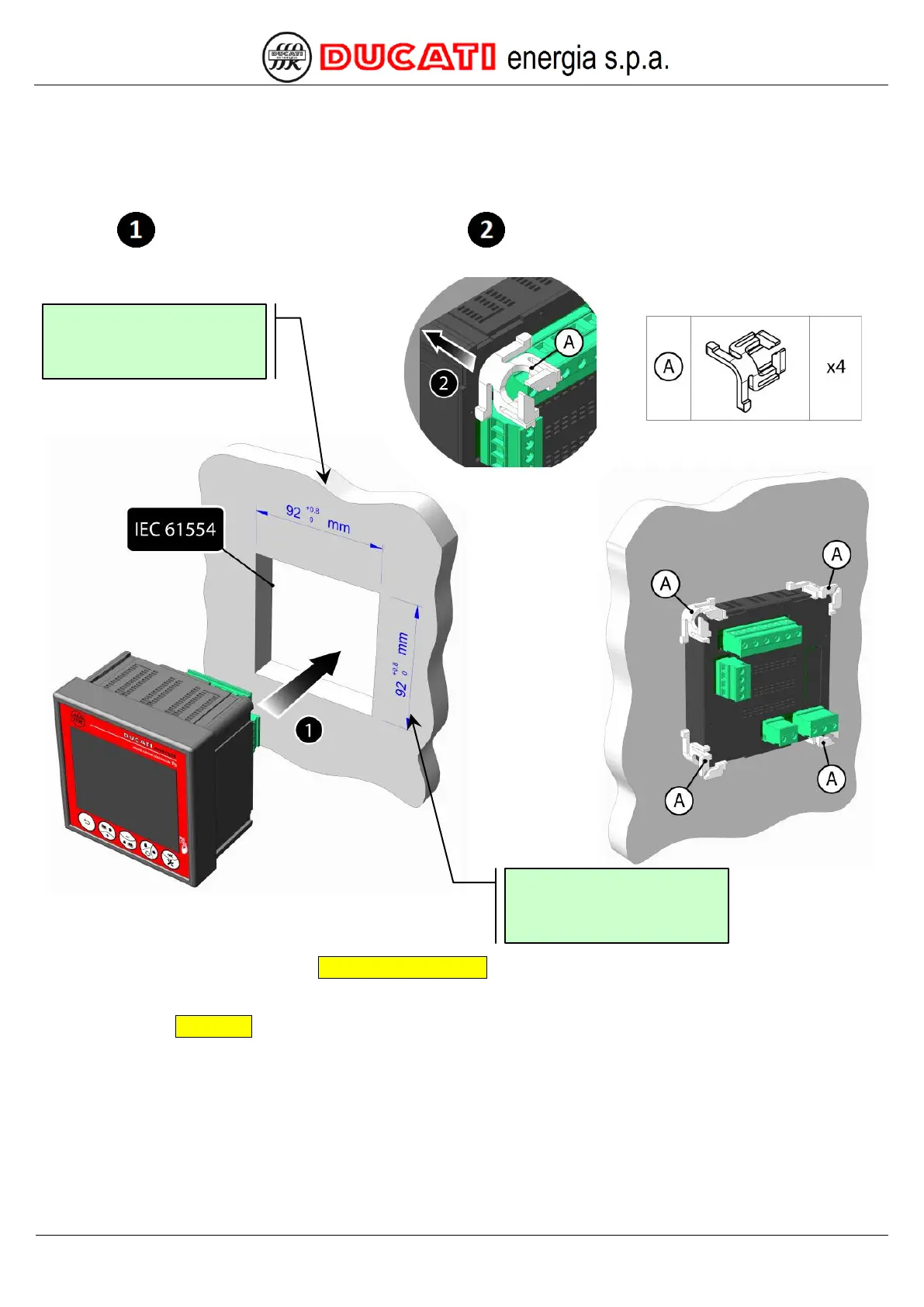

The controller must be installed on a vertical panel on which a square opening in compliance with IEC 61554
standard has been previously made. Opening dimensions must be 92.0mm x 92.0mm, with a permitted tolerance of
+0.8mm and -0mm.
Insert
controller from panel front side and secure it at the back with the 4 supplied retaining clips, letting
them slide fully home against panel rear wall.
For flying connector wiring, refer to Chap. 5 - CONNECTIONS.
GO BACK TO CONTENTS
Dimensions
92.0mm +0.8mm -0mm
Dimensions
92.0mm +0.8mm -0mm
