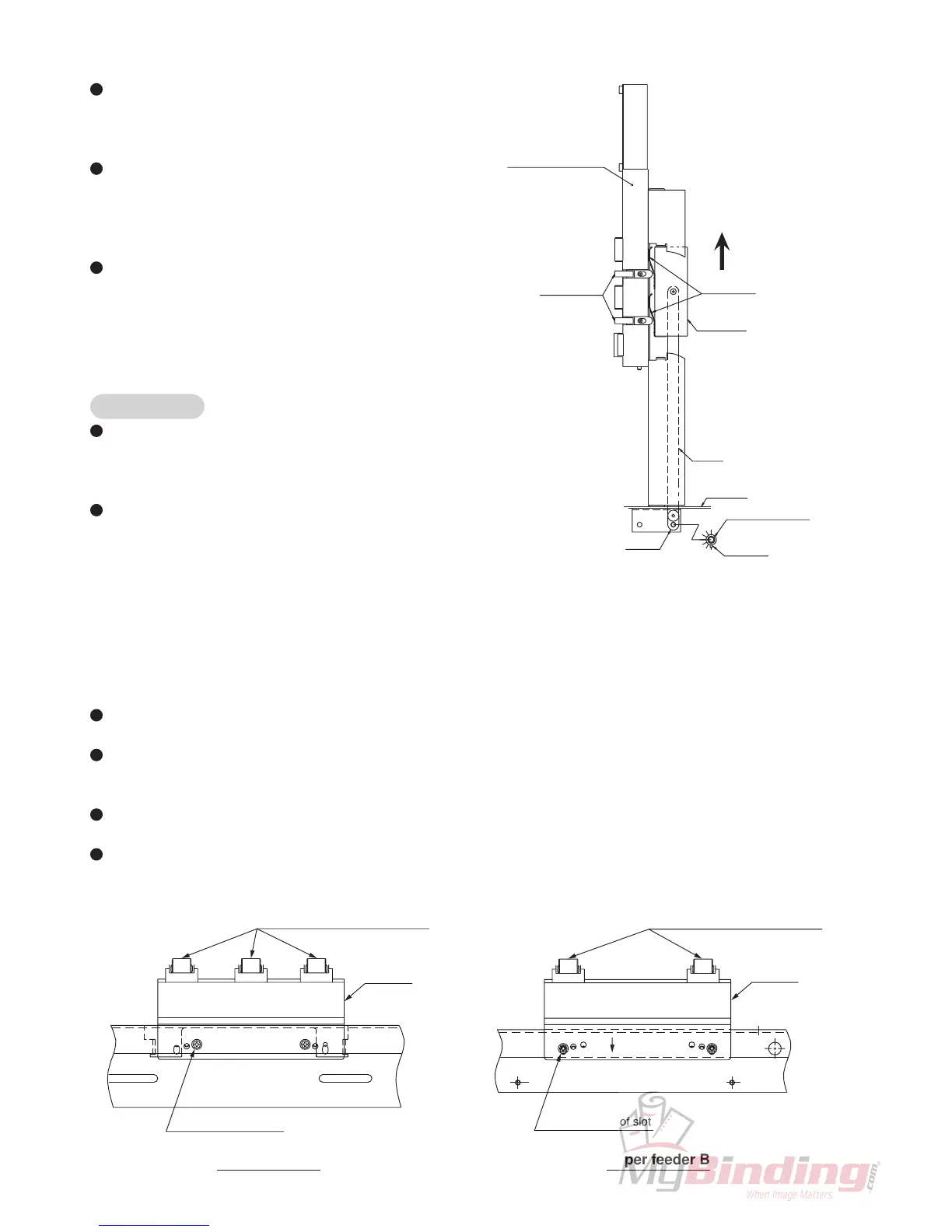

2-5. Separator
When the sheets of paper are double-fed with the
suction belt, the separator keeps the top second or
more sheets of paper from being fed.
The separator moves up and down against the
suction belt. Therefore adjust the space between the
tip end of the separator and the surface of the suction
belt.
Adjust the separator position with the adjusting knob.
When the lever on the shaft end of the adjusting knob
rotates, the bracket with the tilt plate moves via the
link. The separator moves up and down with the tilt
plate.
The separator is made of urethane.
Adjustments
The adjusting knob is attached to the shaft with the
set screw. The lever to operate the separator is
attached to the end of the shaft.
Match the separator position with the pointer of the
adjusting knob.
Move the bracket with the tilt plate in the direction of
an arrow to stop it. In other words, the lever and link
are positioned level as shown in the figure. Then fix
the adjusting knob so that the pointer of the knob is at
“7”.
2-6. Paper Feed Conveyance
Inserts paper sent from the suction belt between the rollers and conveys the paper.
Using the conveyance shaft equipped with the paper feed conveyance rollers as a driving shaft, the secondary
conveyance rollers are pushed against the paper feed conveyance rollers by the leaf springs.
There are three secondary conveyance rollers at the paper feeder A and two at the paper feeder B.
The fixing holes on the bracket differ between paper feeders A and B. Secure at the positions shown in the following
figure.
Paper feeder A Paper feeder B
3 secondary conveyance rollers
Bracket
Secure at inner hole
Adjusting knob
Pointer
Frame
Lever
Link
Bracket
Tilt plates
Separator air box
Separators
1
2
3
4
6
7
5
2 secondary conveyance rollers
Bracket
Secure at top of slot
