1-17
99T-M12M0-0107-0

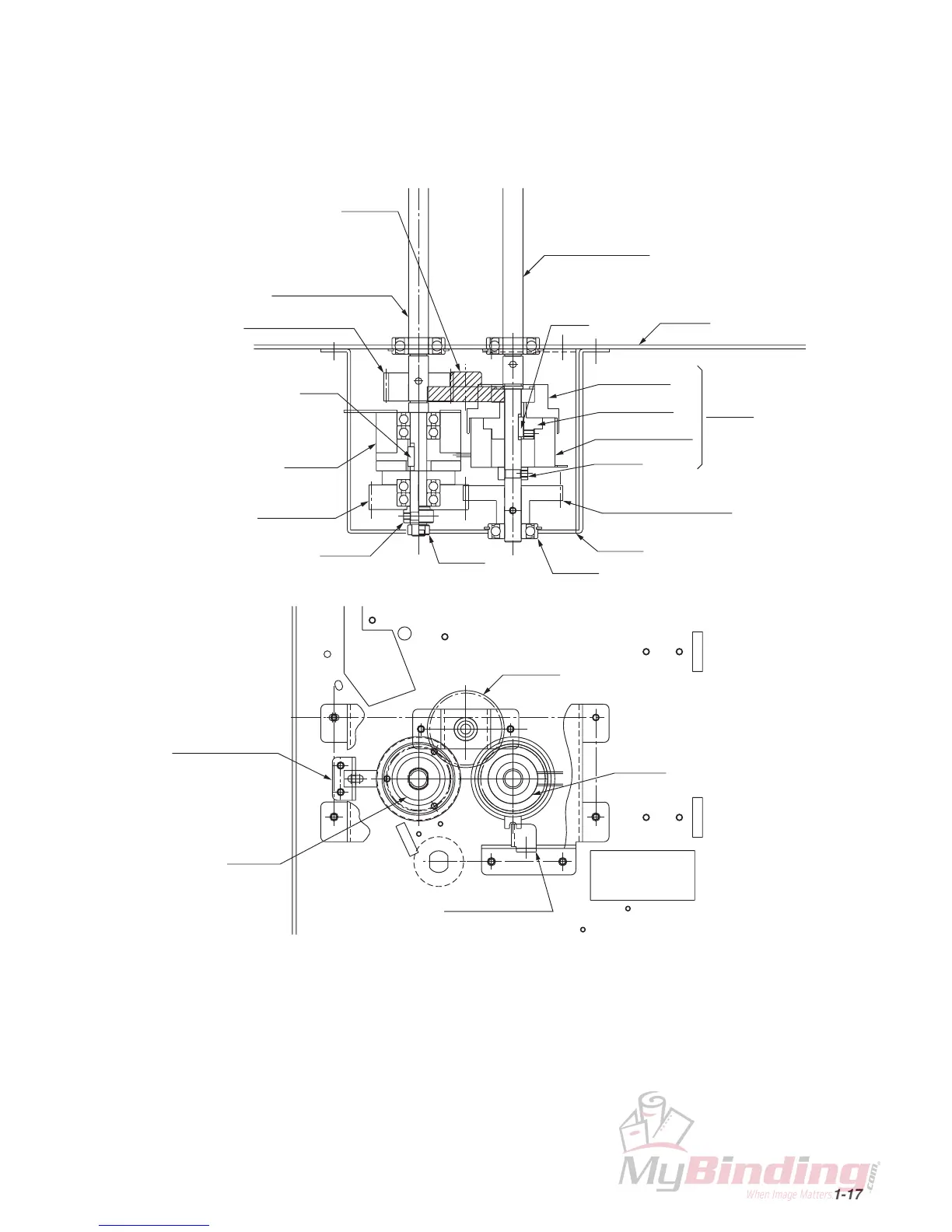

5-2. Replacing the Clutch
Clutches A and B of the reversal section need to be replaced about a million times of reversals.
To replace, remove the bracket, rotating stopper A, transmission shaft gear, collar B, key B, clutch B, reversal shaft
gear, and clutch A (collar A, field core, key A, rotor, gear). Attach the clutch B gear to the new clutch.
Push collars A and B towards the clutch and secure.
Idler gear
Reversal roller shaft 1
Reversal shaft gear
Key B
Key A
Gear section
Rotor section
Field core section
Clutch A
Collar A
Transmission shaft gear
Bracket
Bearing
Transmission shaft
Collar B
Idler gear
Rotating stopper A
Clutch A
Rotating stopper B
Clutch B
Bearing
Clutch B
Clutch B gear
Frame F
