1-16
99T-M12M0-0107-0
5-1. Mechanism
Mechanism which turns paper fed from the paper feeder A inside out when ejecting.
(1) Select the reversal mode and start the machine. The reversal switching gate is switched by the solenoid.
(2) The two clutches operate together so that reversal roller shaft 1 and reversal roller shaft 2 rotate in the direction
to send the paper downwards.
(3) All the paper is sent to the conveyance route of the paper feeder B. When the rear edge of the paper passes the
reversal sensor, reversal roller shaft 1 and reversal roller shaft 2 rotate in the opposite direction to send the paper
to the conveyance bridge.
When clutch A is connected and clutch B is open, the reversal roller rotates in the direction to send the paper to
the conveyance bridge. When clutch B is connected and clutch A is open, it will rotate in the direction to send the
paper downwards.

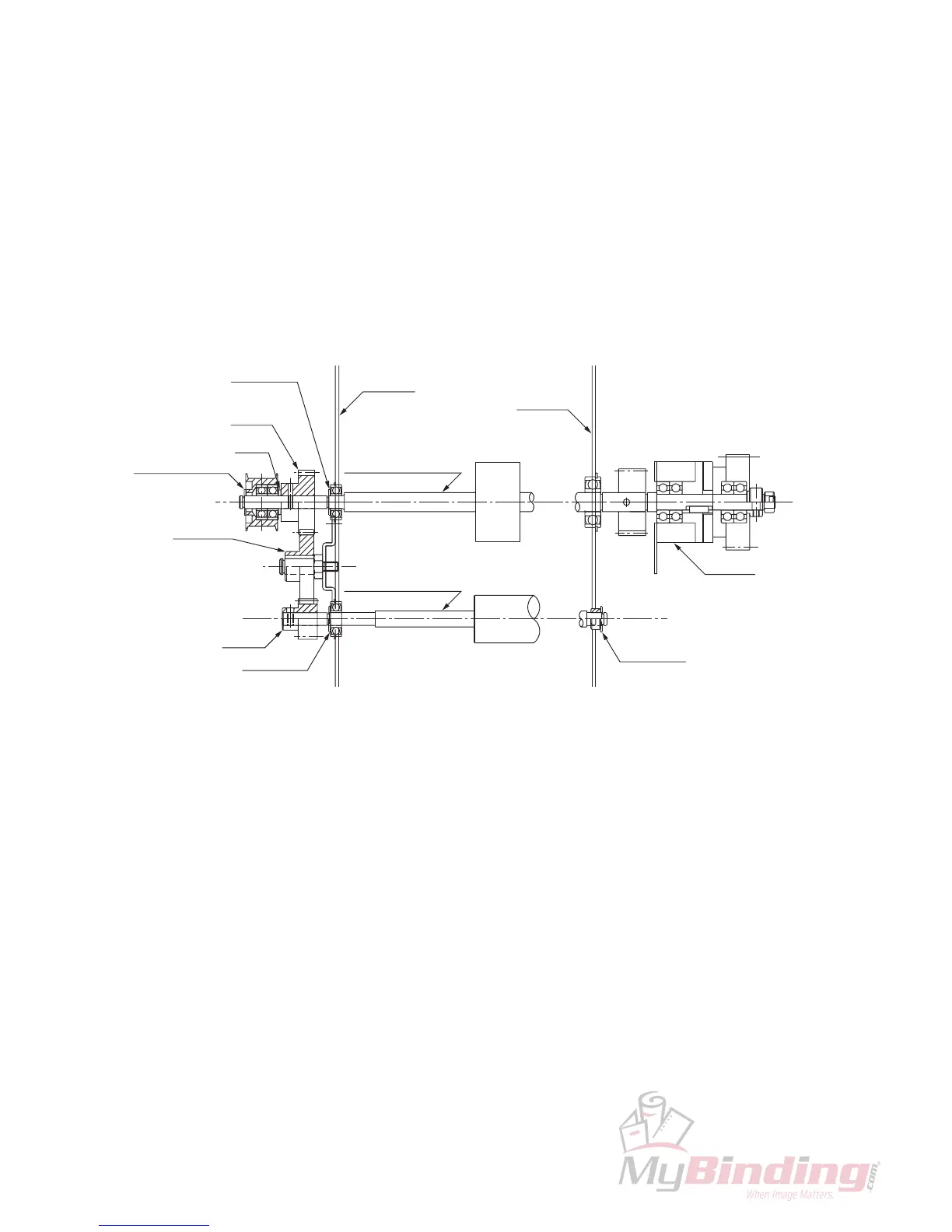

Frame F
Clutch B
Frame B
Adjusting washer
M8W
Idler gear
Gear 1
Gear 2
Spacer
98X-4152X
Spacer
98X-4152X
Spacer
98X-4152X
t1 × 8 × 16
Reversal roller shaft 2
Reversal roller shaft 1
To Next Page
