2-2. Suction Conveyance Section
The suction conveyance section consists of the
suction belt, suction box, conveyance shaft, and
electromagnetic clutch to rotate the conveyance
shaft.
The DC fan is the suction source to suck the paper.
When the DC fan starts to operate, the suction box is
in a suction state. Air is fed through the some square
holes on the suction box. When the suction box is in
the suction state, the paper is sucked into the suction
belt. The electromagnetic clutch attached to the end
of conveyance shaft starts to rotate the conveyance
shaft and at the same time the suction belt starts to
move.
At a fixed time after rotation of conveyance shaft, the
suction box is in the release state.

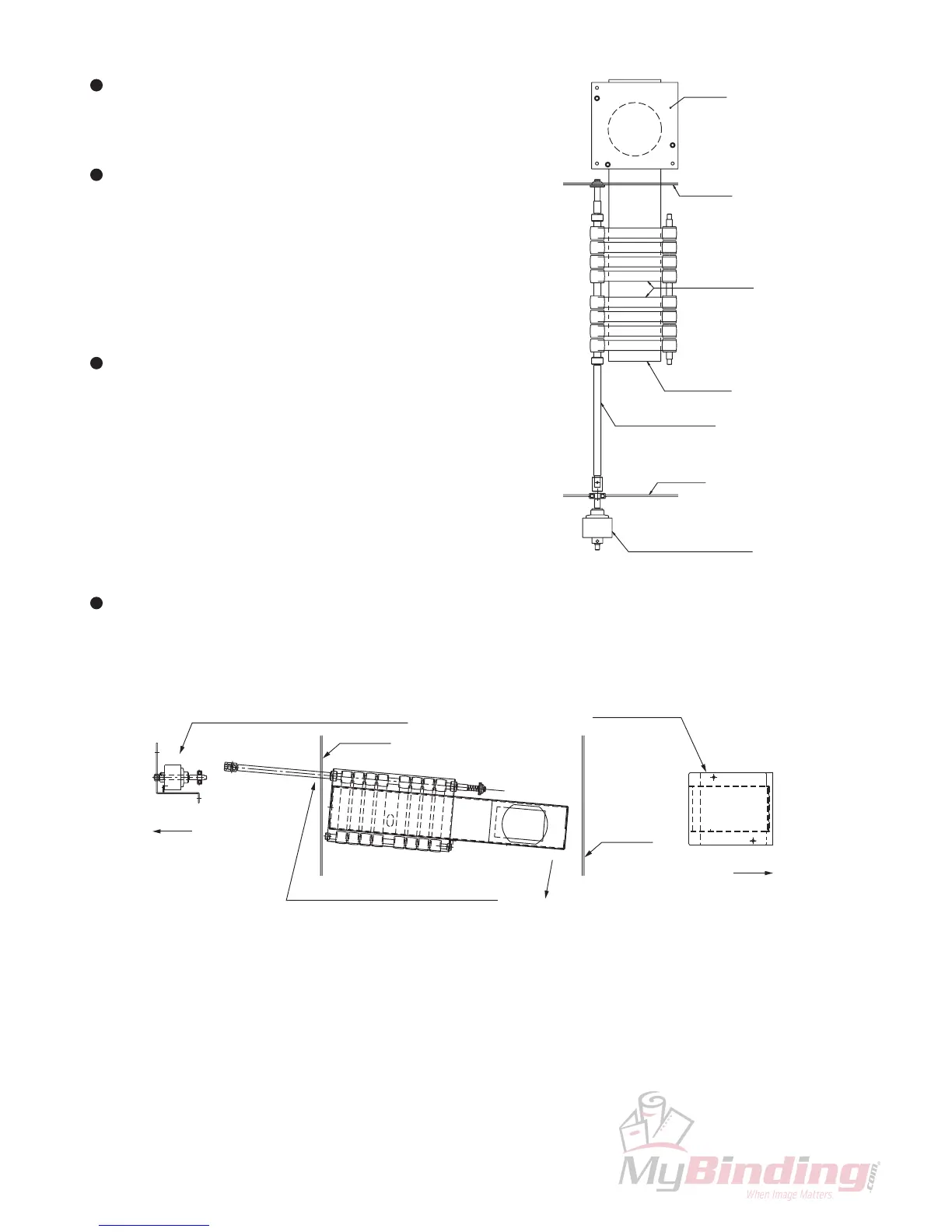

Suction belts
Frame B
Frame F
Electromagnetic clutch
Conveyance shaft
Suction box
DC fan
To remove the suction conveyance section, remove the connector of the bundled wire for no-paper detection,
bracket with DC fan, electromagnetic clutch, bearing, pass the conveyance shaft through the hole of the removed
bearing, and move it.
(When removing the suction conveyance section of the paper feeder A, remove the side guide A as well.)
Electromagnetic clutch, bracket, bearing
Frame F
Pass through hole of removed bearing
Remove
Frame B
DC fan, bracket
Remove
