Duplo DSF-2000 Maintenance Manual

1-21 99T-M12M0-0107-0

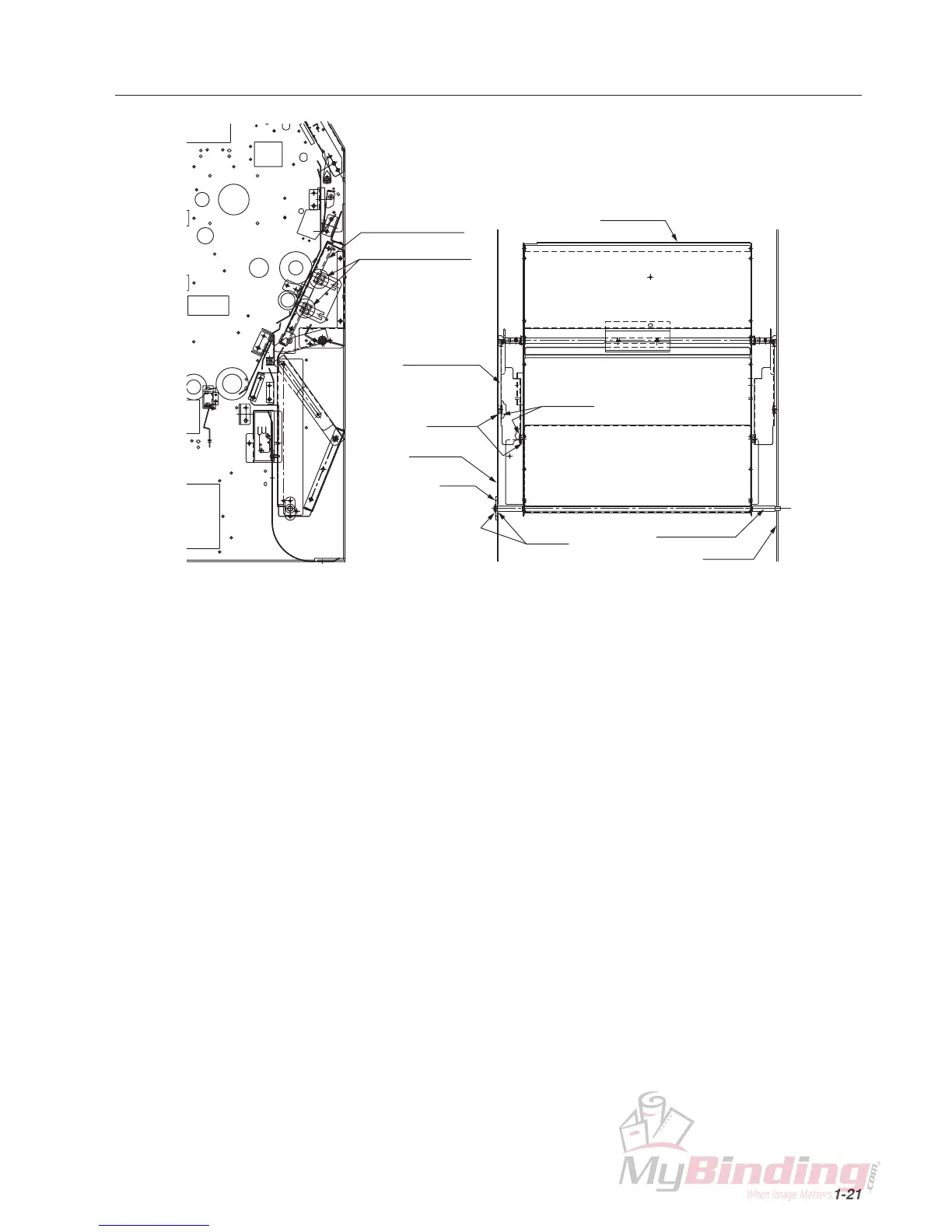

8. LOWER DOOR SECTION
8-1. Removing Procedure
(1) Remove the left and right limit brackets.
(2) Remove the E ring which can be seen from the frame B side, and remove the plate.
(3) Move the fulcrum shaft slightly to the frame B side to remove the lower door.
Lower door
Conveyance guide
Secondary bearings
Limit bracket
Plate
Frame B
Z collars
Washers
E rings
Fulcrum shaft
Frame F
