Duplo DSF-2000 Maintenance Manual

1-26 99T-M12M0-0107-0

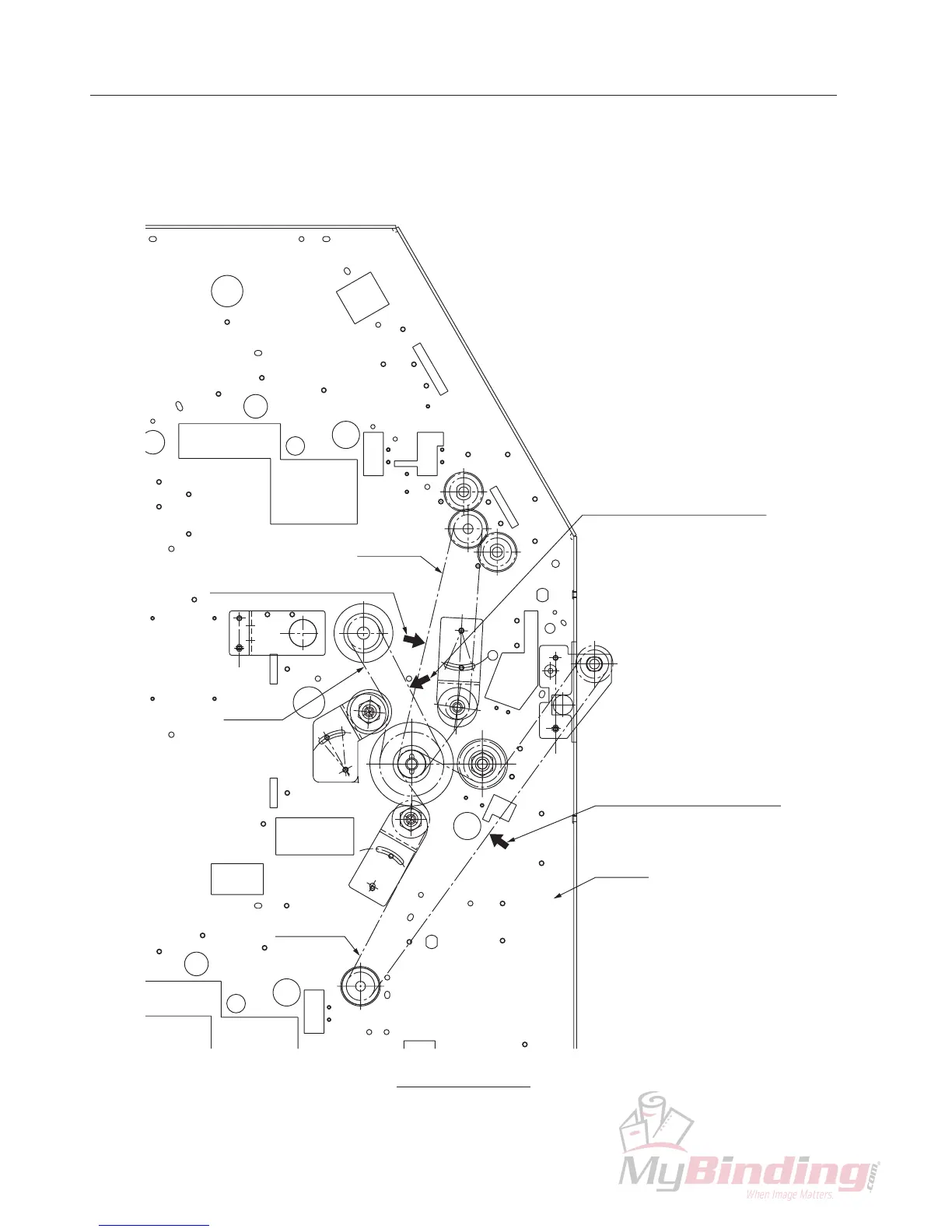

11. ADJUSTING THE TENSION OF THE TIMING BELT
Non-operating side
60S3M468
140XL050
100S3M804
Slack is 6 to 8 mm (0.24" to 0.31")
with 100 g loaded
Slack is 3 to 5 mm (0.12" to 0.20")
with 300 g loaded
Slack is 5 to 7 mm (0.20" to 0.28")
with 300 g loaded
Frame B
