Duplo DSF-2000 Maintenance Manual

1-4 99T-M12M0-0107-0

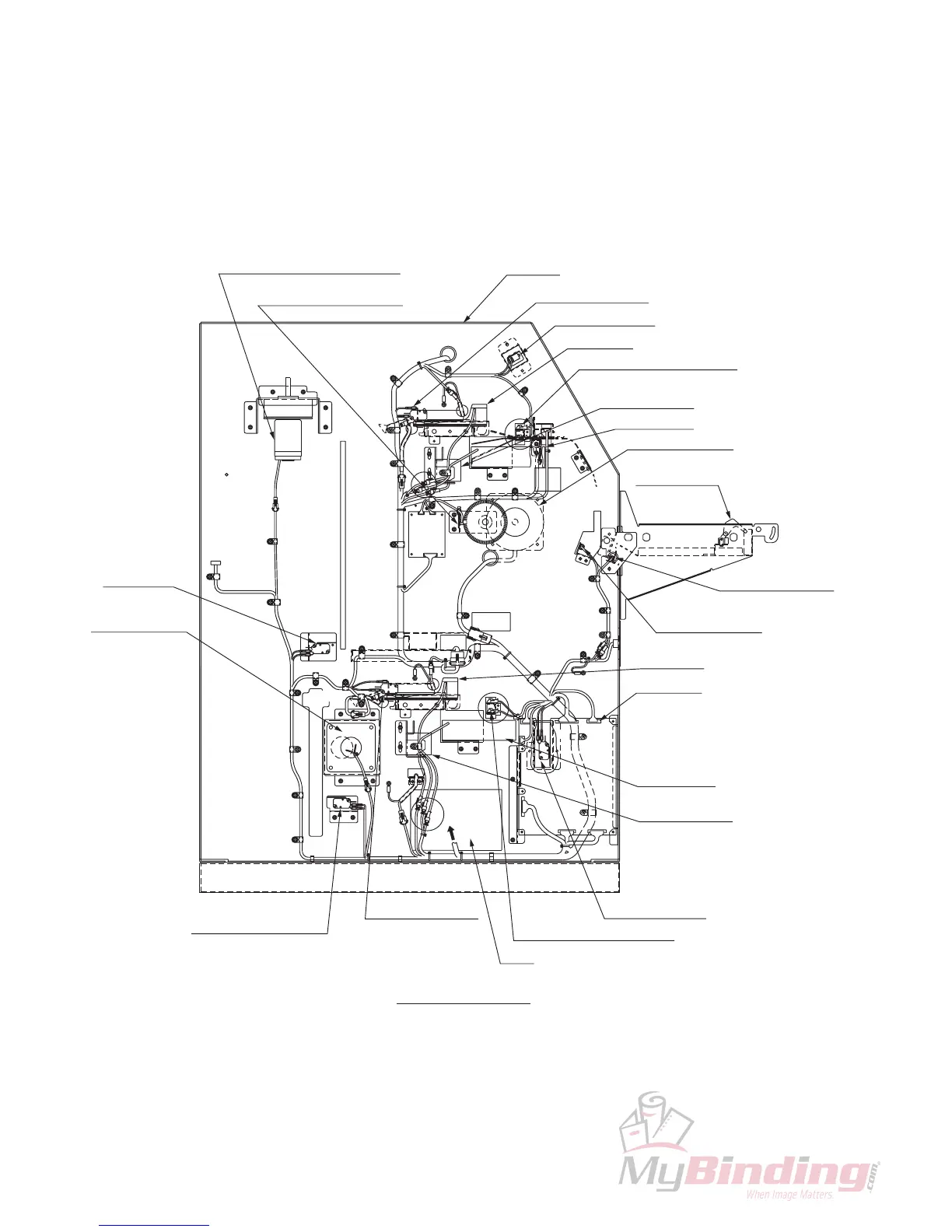

Non-operating side
Index sensor for end mark
Paper feed tray A up/down motor
Frame B
Upper limit switch A
Upper door switch
Suction fan
Double-feed detection sensor
Suction solenoid
Separator fan
Conveyance motor
Paper ejection
sensor
Reversal sensor
(light-receiving side)
(Black cover)
Reversal sensor
(light-emitting side)
(Gray cover)
Suction fan
Main board
Separator fan
Suction solenoid
Lower door switch
Double-feed detection sensor
Plate
Upper limit switch B
Lower limit switch unit B
Lower limit
switch unit A
Paper feed tray B
up/down motor
